BECT940(N)HL (Hi/Lo Spd)
Controller, 1 output, Hi / Lo speed, 100-240VAC

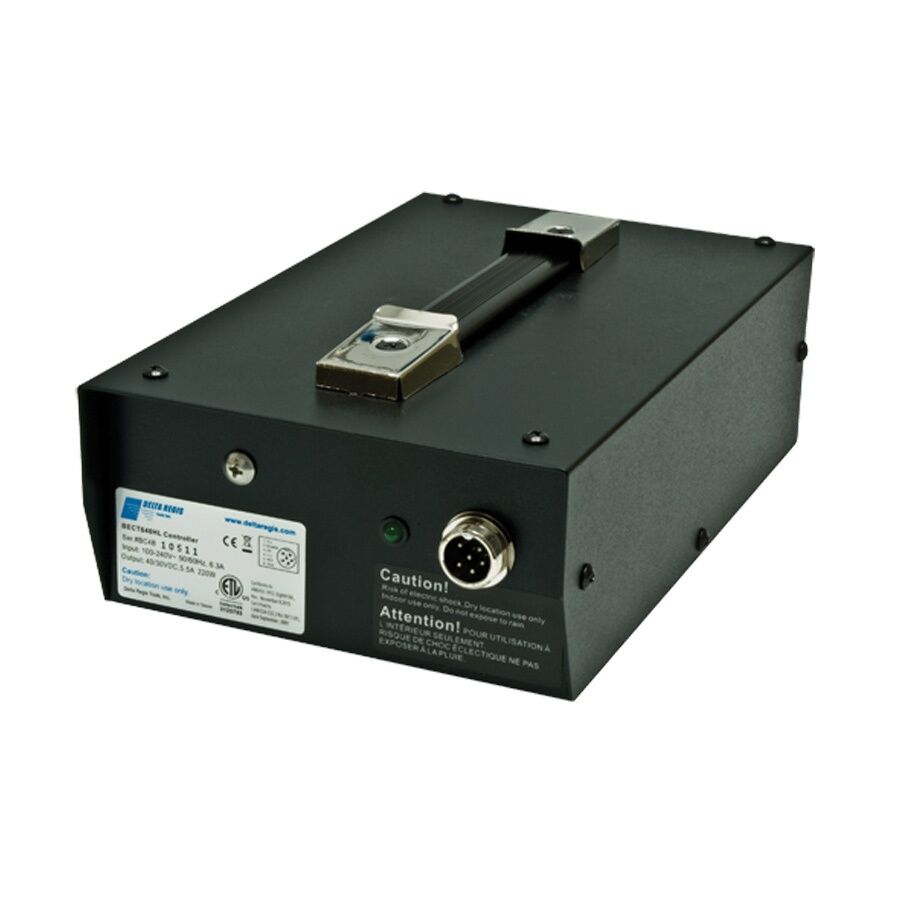

The BECT940HL Controller is designed for maximum power output. It will run all 40VDC Brushless Screwdrivers. The controller accepts input voltages of 100-240VAC, 50/60Hz. Output to the driver is 40/30VDC(Hi/Lo), 220W/360W. CE/RoHS/ETL Approved
- Hi/Lo speed selection switch
- Single output, 6-pin tool connector
- Input 100-240VAC, includes standard North American cordset
- Optional cordset for Europe and the United Kingdom are available
For use with screwdriver models:
CESLT835(P)M, CESLT845(P)M, CESLT855(P)M, CESLT865(P)M, CESLT875(P)M, CESLT885(P)M, CESLT895(P)M
CESP835, CESP845, CESP855, CESP865
CESLT935(P/F), CESLT945(P), CESLT955(P)
| Input | 100-240 VAC, 50/60Hz, 6.3A |
|---|---|
| Output | 40/30 VDC, 360W |
| Dimensions | 213x134x70 mm |
| Weight | 1.8 kg |
| Compliance | CE/RoHS/ETL |
| Cordset | North America, Europe, United Kingdom |
