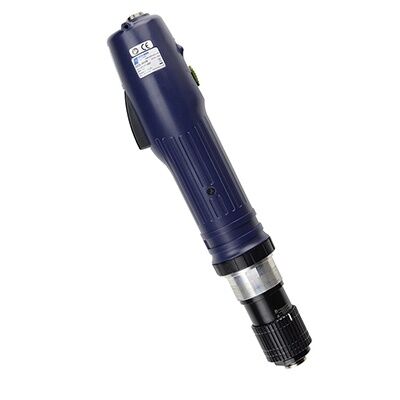

CESLT835M Series
Electric Torque Screwdriver

(2-6 Nm)
(18 – 53 in-lbs)

Part# : CESLT835M Categories: 1.0-3.0 Nm (8.8-26 in-lbs), 3.0-51 Nm (26.55-450 in-lbs), Electric Torque Screwdrivers & Smart Tools, In-line Screwdrivers, Premium Brushless, Premium Brushless

Start Type
Drive Size
ESD Safe/Non ESD Safe	Clear

CESLT835M Series
Electric Torque Screwdriver
(2-6 Nm)
(18 – 53 in-lbs)

40VDC Series drivers are capable of developing high torques. These drivers must be used with the included side handle attachment or mounted in a torque reaction arm for operator safety.

CESLT8_M Series Screwdrivers incorporate an aluminum front collar to facilitate fixture mounting and each driver includes an accessory side handle for handheld applications.

• Precise Torque Control, Low Torque Reaction
• Quiet, Brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller req’d – sold separately)
• CE, RoHS Compliant

Class	40V High Torque Shut-off
Start Type	Lever, Push
Torque Range	18-53 in-lbs (2-6 Nm)
Speed (RPM)	1200
Style	Inline
Drive Size	1/4" Hex Drive, 3/8" Square Drive
Length	297 mm (11.7 in)
Diameter	46.2 mm (1.8 in)
Weight	1.3 kg (2.6 lbs)
Compliance	CE / RoHS
ESD Safe/Non ESD Safe	ESD Safe, Non ESD Safe
