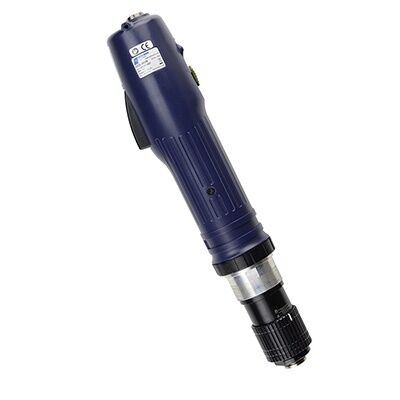

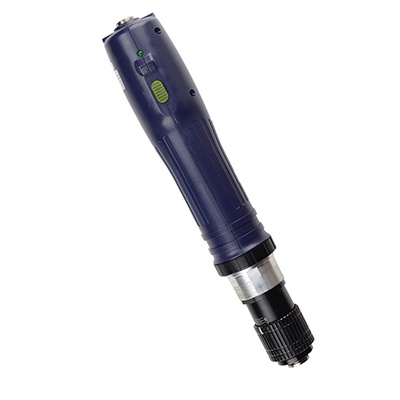

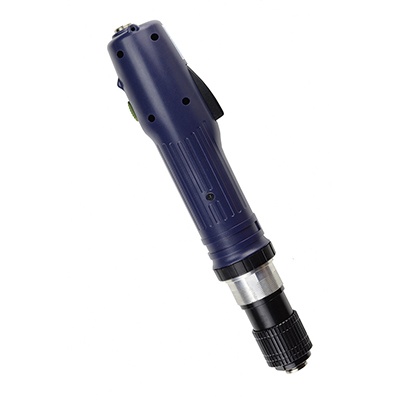

CESLT885M-SQ Series
Electric Torque Screwdriver
(12-35 Nm)
(106-310 in-lbs)
(106-310 in-lbs)
Free Shipping Available!
Complete your fastening system...
This item: CESLT885M-SQ Series
Electric Torque Screwdriver
(12-35 Nm)
Electric Torque Screwdriver
(12-35 Nm)
(106-310 in-lbs)
Standard Power Supply (All Models)
Upgraded Power Supply - Batch Count & I/O (All Models)
1 × Tool Balancer DR-TB1.5K (1.1-3.3 lbs) 44.00 USD
CESLT8_M Series Screwdrivers incorporate an aluminum front collar to facilitate fixture mounting.
40VDC Series drivers are capable of developing high torques. These drivers must be mounted in a torque reaction arm or fixture for operator safety.
- Precise Torque Control, Low Torque Reaction
- Quiet, Brushless DC motor means no carbon dust
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
- Screwdriver includes a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller req’d – sold separately)
- CE, RoHS Compliant
| Class | 40V High Torque Shut-off |
|---|---|
| Start Type | Lever, Push |
| Torque Range | 106-310 in-lbs (12-35 Nm) |
| Speed (RPM) | 350 |
| Style | Inline, Fixture Mount |
| Drive Size | 3/8" SQ Drive |
| Length | 393 mm (15.5 in) |
| Diameter | 52.7 mm (2.07 in) |
| Weight | 2.2 kg (4.8 lbs) |
