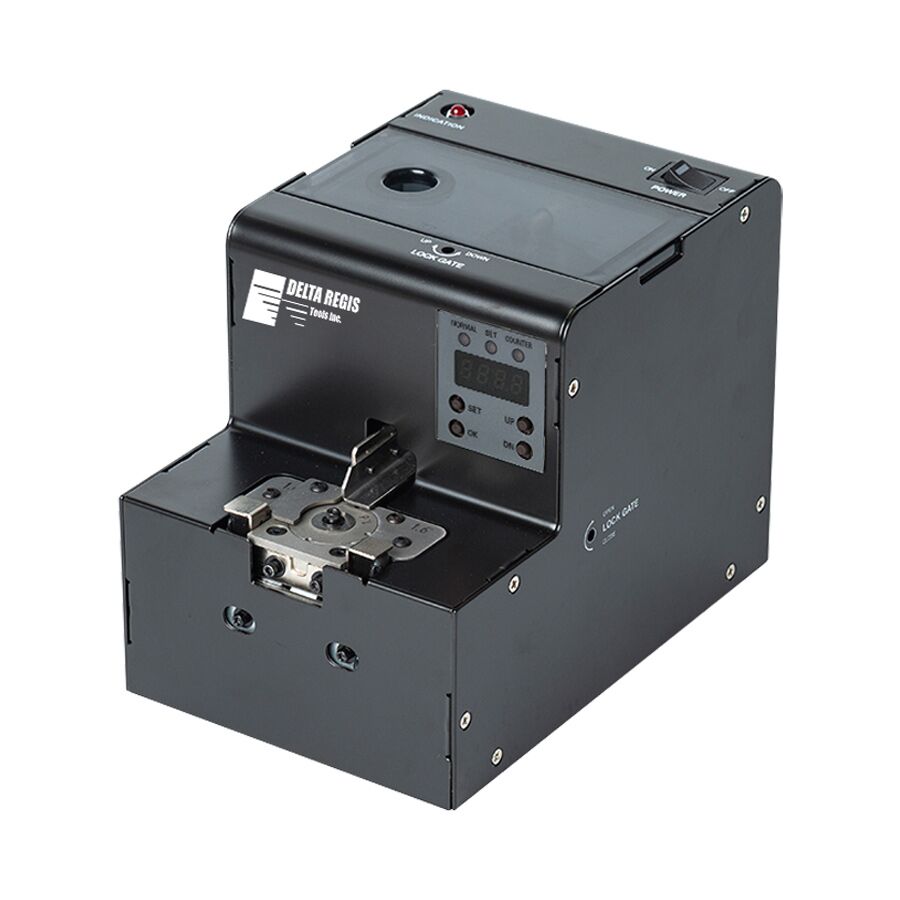

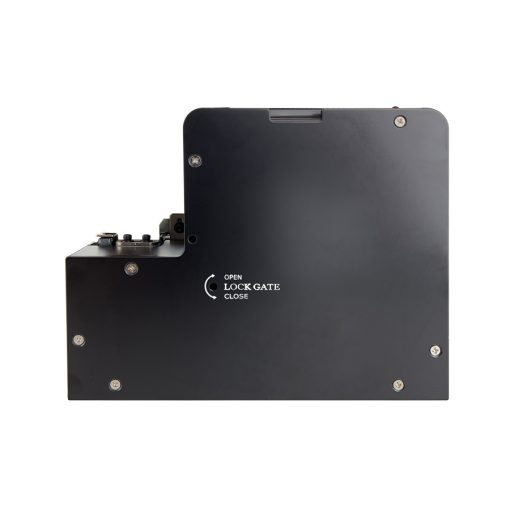

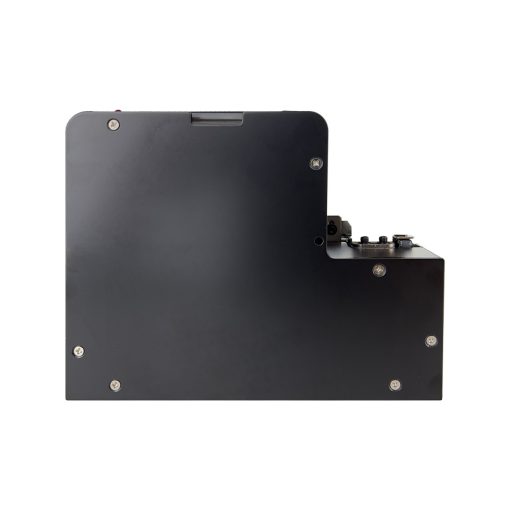

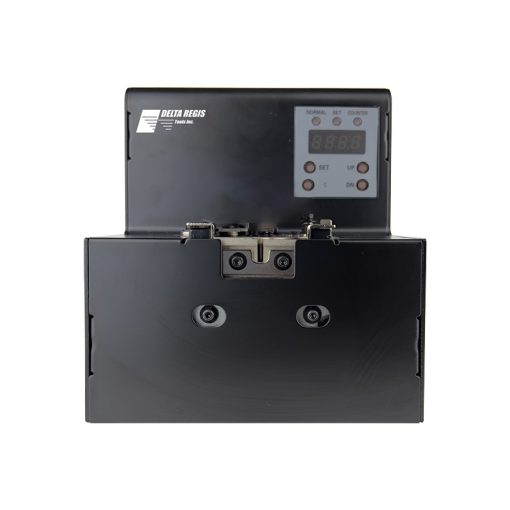

DRFF-508R Series Screw Presenter
Screw Presenter
- Ideal for robotic applications – magnetic or vacuum pick-up
- Signal output when screw is ready for pick-up/PLC counting
- Brushless driver motors for vibration and feeding
- Quiet operation
- Simple service and set-up
- Integrated screw counter with LED displays for assembly process feedback
- Small size – does not clutter work space
- Includes AC adapter, set-up tools and shims
| Output | 12VDC (AC Adapter) |
|---|---|
| Max Screw Thread Length | 0.31 in (8 mm) |
| Screw Size | M0.8 (#000), M1.0 (#00), M1.2 (#00), M1.4 (#0), M1.7 (#1), M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5), M3.5 (#6), M4.0 (#8), M5.0 (#10) |
| Dimensions | 7.16×4.9×5.9 in (182x124x150 mm) |
| Weight | 3.1 kg (6.8 lbs) |
| Pick-up Type | Robotic |
| Hopper Size | 12.2-13.4 cu.in (200-220 cc) |
