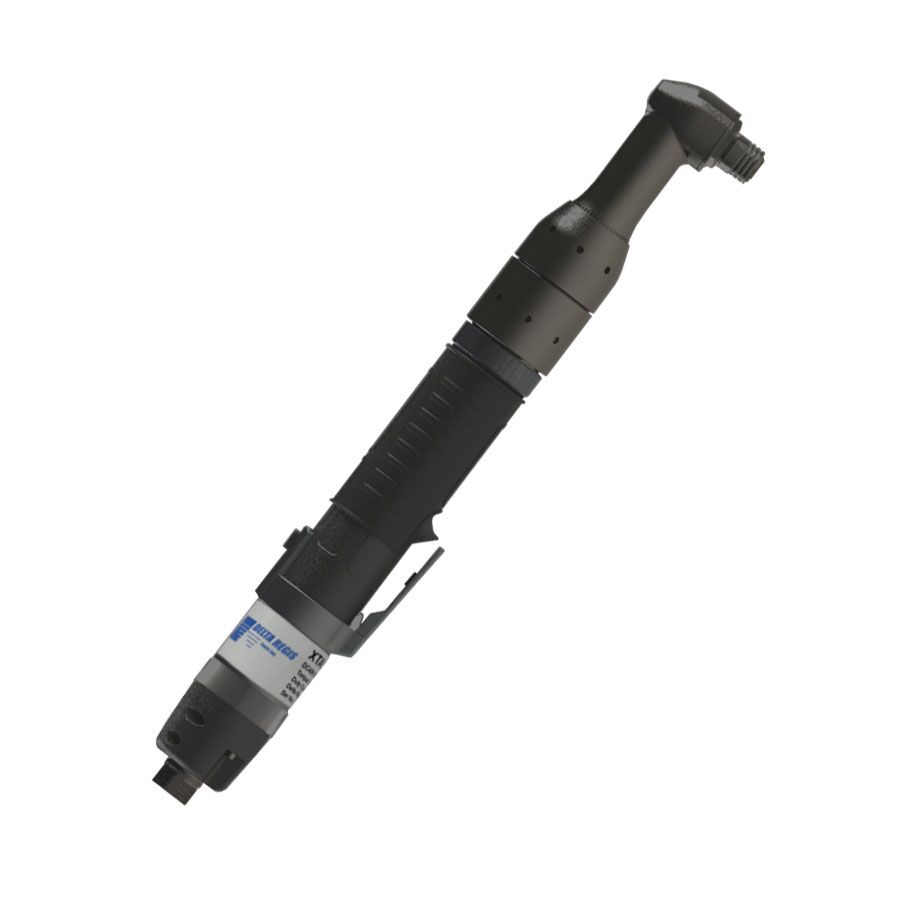

From To ESL-XTA/RAH Series
Transducerized Right Angle Electric Screwdrivers with Angle Encoder
(0.6-25 Nm)
(5.3-221 in-lbs)
(5.3-221 in-lbs)
The ESL-XTA Series tools work hand in hand with the XTCA Transducerized Torque & Angle Control System bringing you full control of your entire fastening process. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the convenient and user friendly touch screen HMI.
- High precision torque transducer (made in Germany)
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
Available ESL-XTA Series Right Angle Transducerized Screwdrivers
Power supply required DR-XTC ?sold separately
| Input Voltage | DC40V |
|---|---|
| Torque Range | 0.4-3.0 Nm (3-26 in-lbs), 0.6-5.0 Nm (6-44 in-lbs), 0.9-7.0 Nm (8-62 in-lbs), 1.5-12.0 Nm (13-106 in-lbs), 2.2-18.0 Nm (20-159 in-lbs), 3.1-25.0 Nm (28-221 in-lbs) |
| Power Consumption | 90W |
| Weight | 1233g (2.7 lbs) |
| Length | 330 mm (13 in) |
| ESD Safe | Yes |
| Bit Type | 1/4" Hex |
