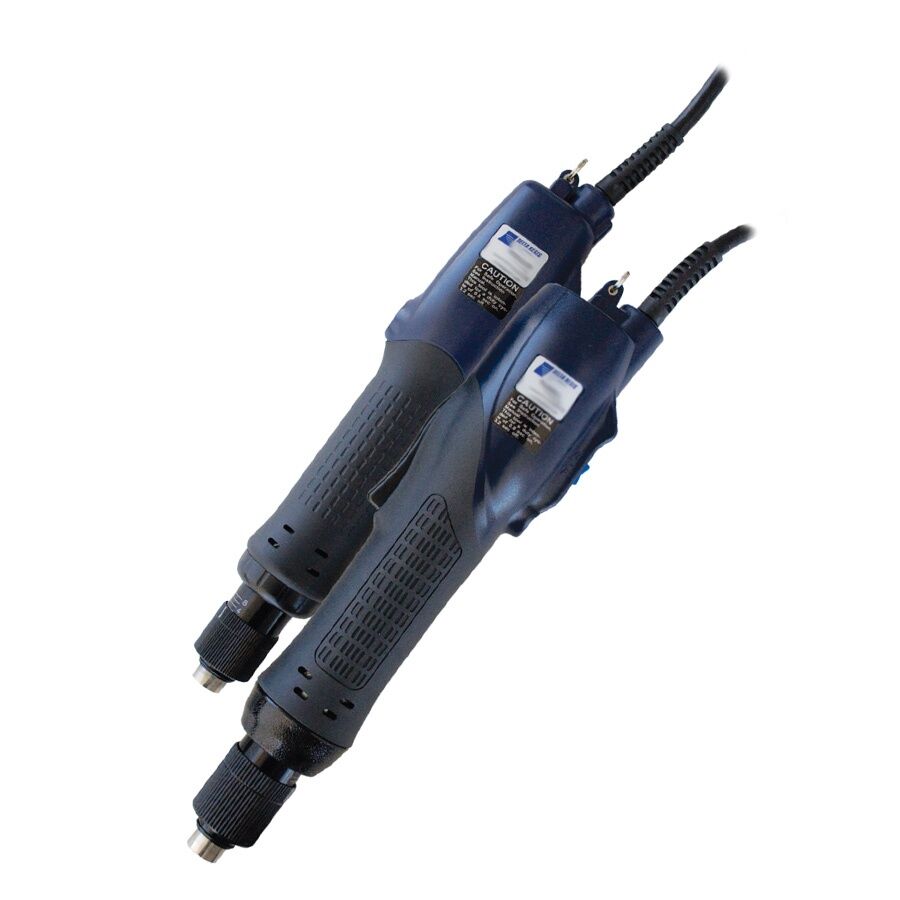

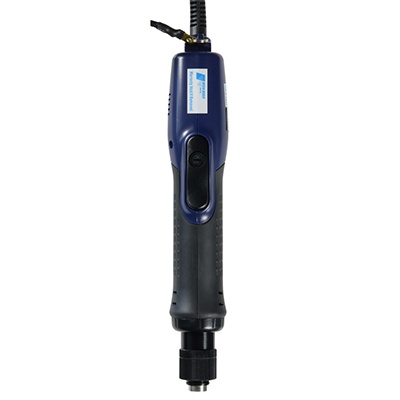

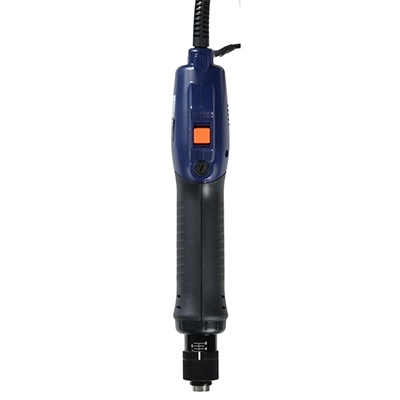

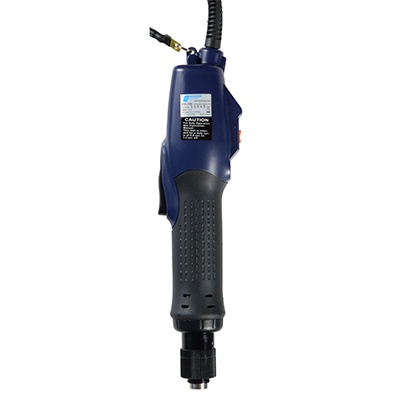

ESL301 Series
Electric Torque Screwdriver
(0.3-1.9 Nm)
(2.5-16.5 in-lbs)
(2.5-16.5 in-lbs)
- Direct plug-in screwdriver, built-in AC to DC rectifier
- Motor shuts off when torque setting is reached
- Ergonomic soft cushion grip for operator comfort
- Shut-off clutch provides excellent torque repeatability
- External torque adjustment – easy to set up and secure with optional torque locking sleeve
- Wide torque range – single model versatility
- Externally replaceable brushes for ease of maintenance
- 1/4″ hex bit holder accepts standard power bits
- Integral 9 ft (2.7 m) cable with EMC noise filtering module
| Class | 120V Shut-off (Carbon Brush Motor) |
|---|---|
| Start Type | Lever, Push |
| Torque Range | 2.5-16.5 in-lbs (0.3-1.9 Nm) |
| Speed (RPM) | 1000 |
| Input | 120VAC |
| Drive Size | 1/4" Hex |
| Length | 241 mm (9.5 in) |
| Diameter | 38 mm (1.5 in) |
| Weight | 544 g (1.2 lbs) |
| Compliance | RoHS |
