ESL301 Series(0.3-1.9 Nm)(2.5-16.5 in-lbs)

ESL302 Series
(1.5-4.4 Nm)
(13-39 in-lbs)

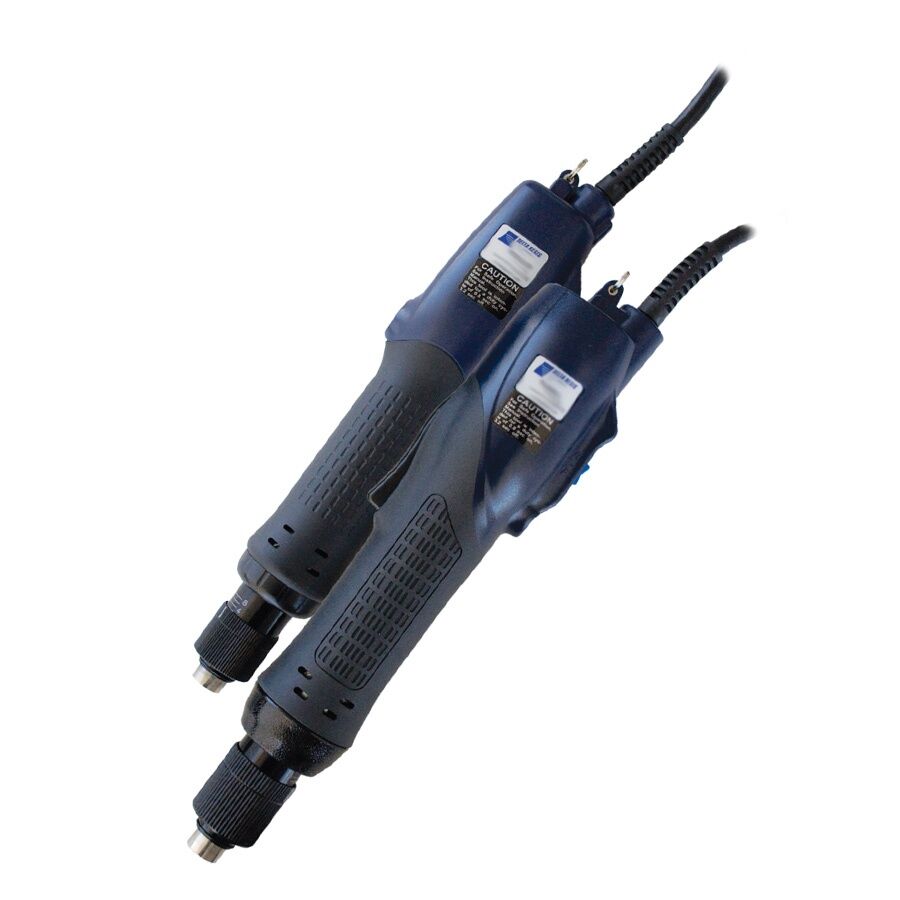

Part# : ESL302 Categories: 1.0-3.0 Nm (8.8-26 in-lbs), 120V Shut Off Clutch, 3.0-51 Nm (26.55-450 in-lbs), Direct Plug-in, Direct Plug-in, Electric Torque Screwdrivers & Smart Tools, In-line Screwdrivers

• direct plug-in screwdriver, built-in AC to DC rectifier
• motor shuts off when torque setting is reached
• ergonomic soft cushion grip for operator comfort
• shut-off clutch provides excellent torque repeatability
• external torque adjustment – easy to set up and secure with optional torque locking sleeve
• wide torque range – single model versatility
• externally replaceable brushes for ease of maintenance
• 1/4″ hex bit holder accepts standard power bits
• integral 9 ft (2.7 m) cable with EMC noise filtering module

Class	120V Shut-off (Carbon Brush Motor)
Start Type	Lever, Push
Torque Range	13-39 in-lbs (1.5-4.4 Nm)
Speed (RPM)	500
Input	120VAC
Drive Size	1/4" Hex
Length	269 mm (10.6 in)
Diameter	41 mm (1.6 in)
Weight	700 g (1.6 lbs)
Compliance	RoHS
