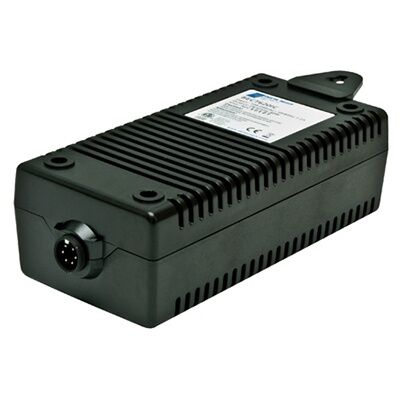

The power supply converts AC input power to the DC output voltage level required to properly run the screwdriver. The BECT820(N) provides a 32V DC output (Hi) to the 6 pin tool connector.

Use with:

All 32V Model Tools

Features:

Hi/Lo speed selection (Hi speed only applicable to 2000 rpm tools)
Single output
Input voltage 100-240VAC

Input	100-240 VAC
Output	32 VDC, 6 pin tool connector
Dimensions	195x76x56 mm
Weight	450g (1lbs)
Compliance	CE/RoHS/ETL
Cordset	North America, Europe, United Kingdom
