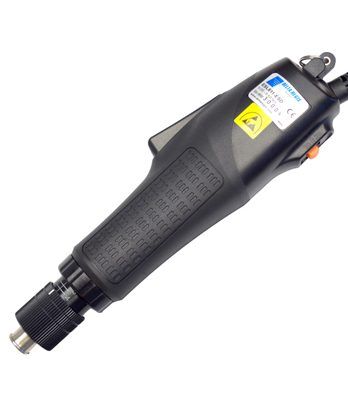

CESL810-ESD Series Electric Torque Screwdriver

ESD Safe housing comes standard

  • Precise torque control, low torque reaction
  • Quiet brushless DC motor means no carbon dust
  • Compact body design results in exceptional maneuverability and operator comfort
  • Less heat build-up and higher duty cycle capabilities than conventional brush motors
  • 3 year motor warranty
  • Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
  • CE, RoHS Compliant
  • Power supply required – sold separately

Inline Electric Torque Screwdrivers provide excellent ergonomic benefits and increase efficiency to most assembly applications. Our inline electric torque controlled screwdrivers are offered in both AC direct plug-in a well as DC with external power supply and are offered in multiple torque ranges, start types & operating speeds. The Delta Regis CESL8 Series Premium Brushless Screwdrivers provide the ultimate combination of ergonomics, precision, performance and environmental cleanliness to the installation of fasteners.

Class

32V Compact Shut-off
Start Type

Lever
Torque Range

0.2-3.1 in-lbs (0.02-0.35 Nm)
Speed (RPM)

500/350, 1000/700
Style

Inline
Input

32-24VDC
Drive Size

1/4" Hex
Length

185 mm (7.3 in)
Diameter

32 mm (1.3 in)
Weight

385 g (0.8 lbs)
Compliance

CE / RoHS
ESD Safe/Non ESD Safe

ESD Safe
