CESPT824 SeriesElectric Torque Screwdriver(0.3-2 Nm)(2.7-17.7 in-lbs)

CESPT828 Series
Electric Torque Screwdriver

(0.8-3.5 Nm)
(7-31 in-lbs)

Part# : CESPT828 Categories: CESPT8 Series, Electric Torque Screwdrivers & Smart Tools, Pistol Grip Screwdrivers

Speed (RPM)
Cable Connection Type
ESD Safe/Non ESD Safe
Torque Range	Clear

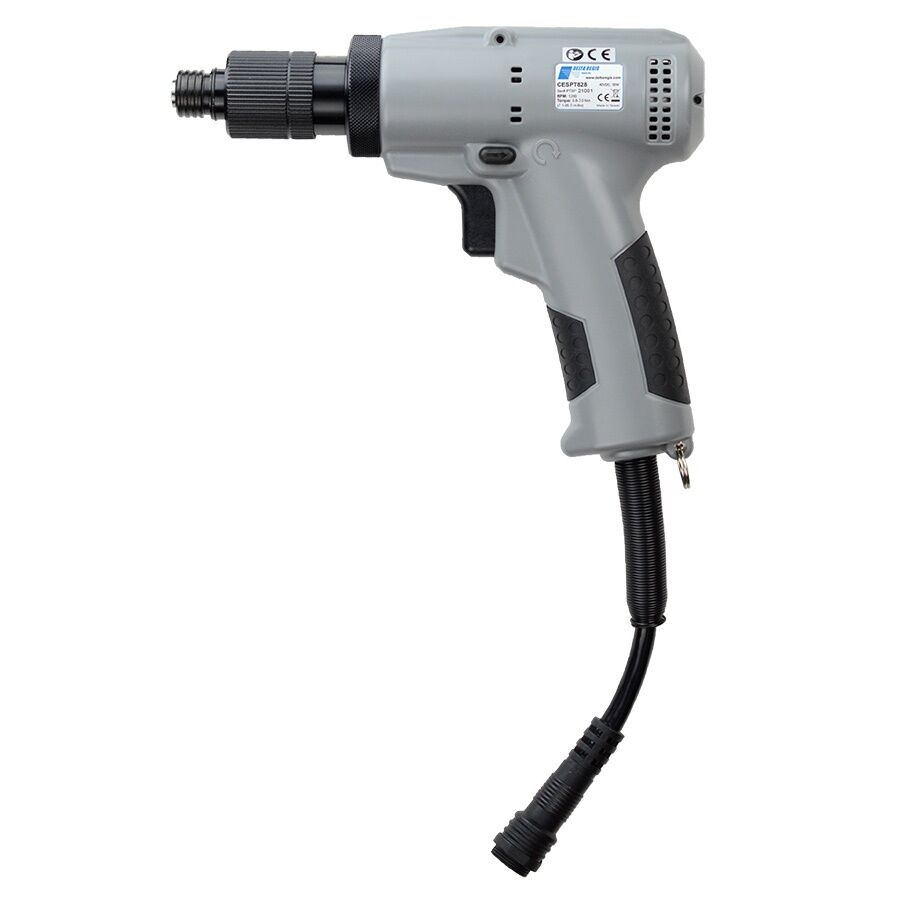

CESPT828 Series
Electric Torque Screwdriver
(0.8-3.5 Nm)
(7-31 in-lbs)

• Clean, powerful 40V brushless motor technology
• 1/4” hex drive
• Fan-cooled motor reduces heat build-up
• Dependable, long lifespan
• Two speed selections available
• Trigger start, forward/reverse switch
• Compact, ergonomic pistol housing
• Available with top or bottom cable connection
• Optional ESD-safe housing available
• CE/RoHS compliant

Class	40V Standard Shut-off
Start Type	Trigger
Speed (RPM)	1200, 1700, 3300
Style	Pistol
Drive Size	1/4" Hex
Length	185 mm (7.3 in)
Diameter	42.5 mm (1.7 in) (Pistol Style)
Weight	0.7 kg (1.5 lbs)
Compliance	CE / RoHS
Cable Connection Type	Top Connection, Bottom Connection
ESD Safe/Non ESD Safe	ESD Safe, Non ESD Safe
Torque Range	7.1-26.5 in-lbs (0.8-3 Nm), 8.8-26.5 in-lbs (1-3 Nm), 10.6-31.0 in-lbs (1.2-3.5 Nm)
