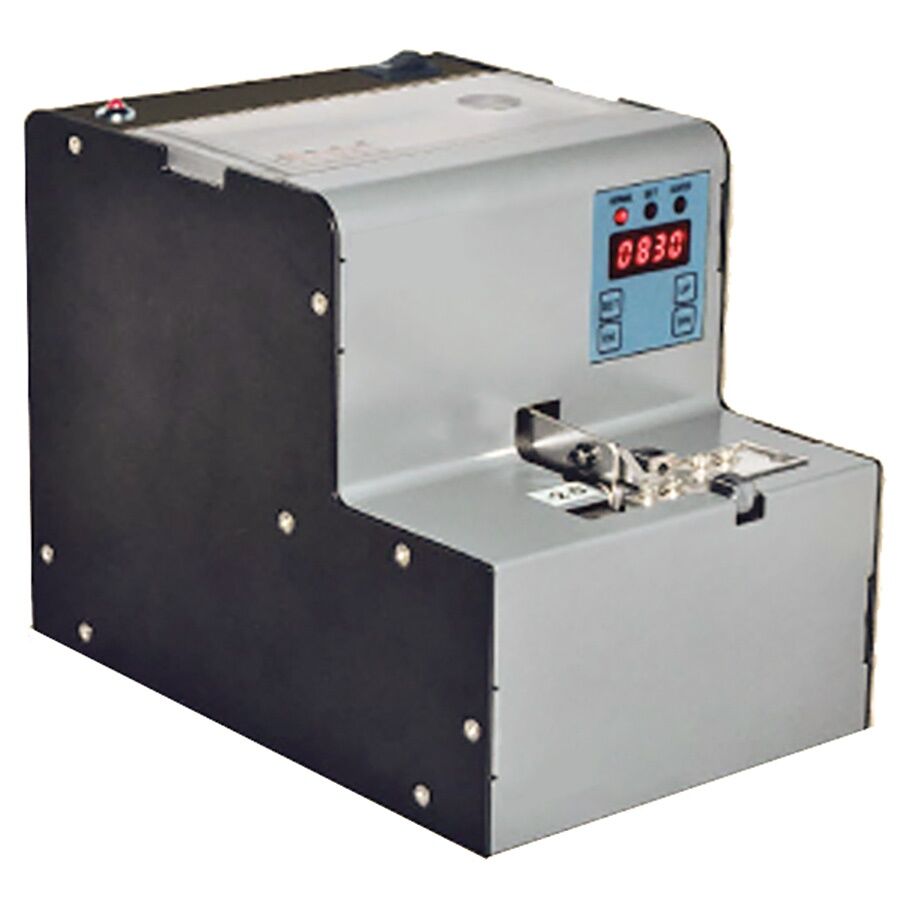

DRFF-300R Series Screw Presenter
Screw Presenter
- Ideal for robotic applications / magnetic or vacuum pick-up
- Signal output when screw is ready for pick-up/PLC counting
- Brushless driver motors for vibration and feeding
- Quiet operation
- Simple service and set-up
- Integrated screw counter with LED displays for assembly process feedback
- Small size – does not clutter work space
- Includes AC adapter, set-up tools and shims
- DRFF-200R and 500R cover most applications, 300R is available for longer screws
| Input | 100-240VAC |
|---|---|
| Output | 12VDC (AC Adapter) |
| Max Screw Thread Length | 0.59 in (15 mm) |
| Screw Size | M0.8 (#000), M1.0 (#00), M1.2 (#00), M1.4 (#0), M1.7 (#1), M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5) |
| Dimensions | 7.2×4.9×5.7 in (182x124x146 mm) |
| Weight | 3.0 kg (6.6 lbs) |
| Pick-up Type | Robotic |
| Hopper Size | 12.2-13.4 cu.in (200-220 cc) |
