- Improve productivity – screws dispensed for easy pick-up
- Extended fastener rail allows more fasteners to be lined up and ready for pick-up
- Magnetic pick-up of ferrous screws
- Precise vibration control allows feeding of many different screw types and sizes
- Adjustable drum rotation timer, vibration timer, and vibration intensity
- Individual driver motors for vibration and feeding
- Auto shut-off of vibration/feed when not in use
- Quiet operation
- Simple service and set-up
- Great value – very cost effective way to increase productivity
- Small size – does not clutter work space
- Includes AC adapter, set-up tools and shims

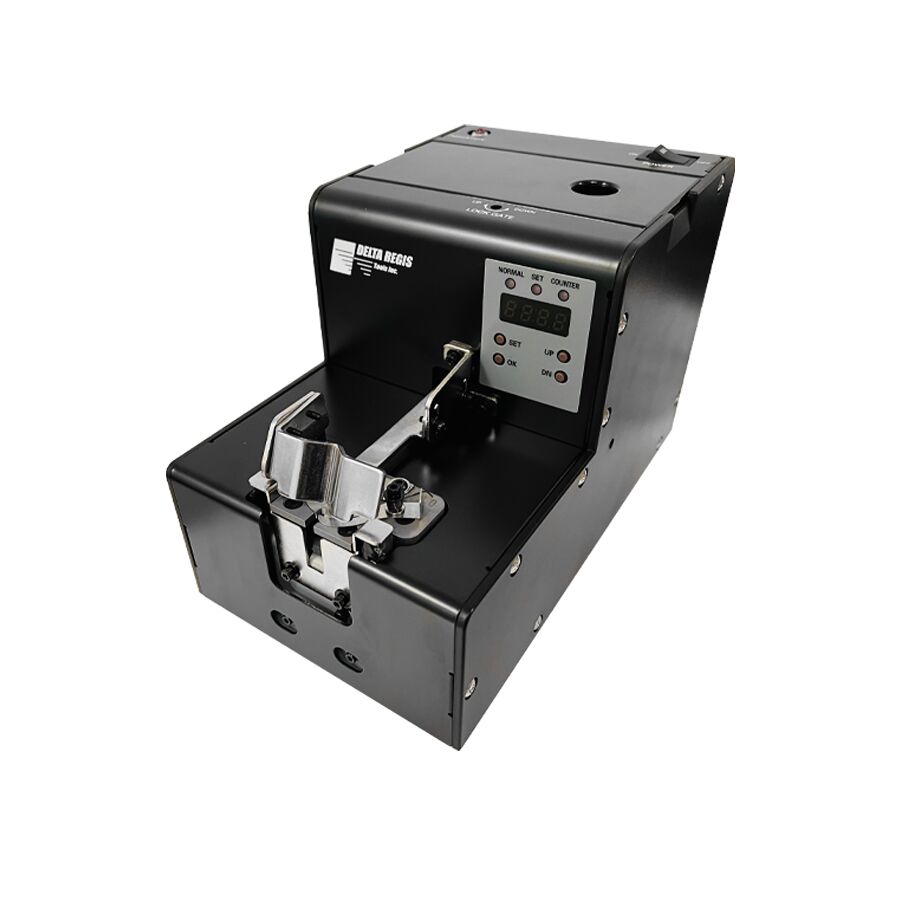

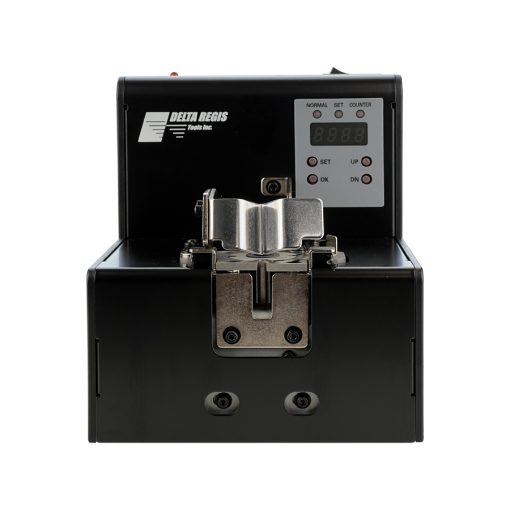

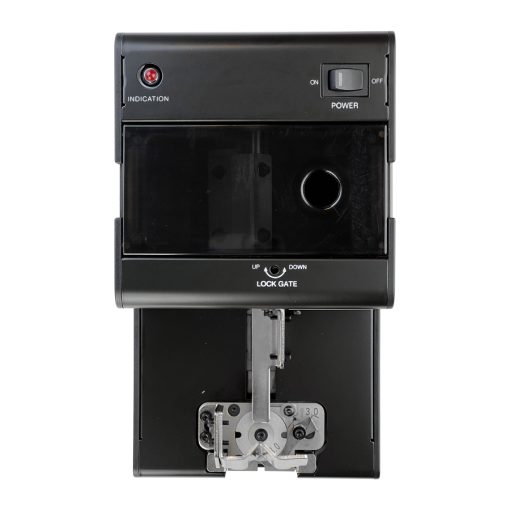

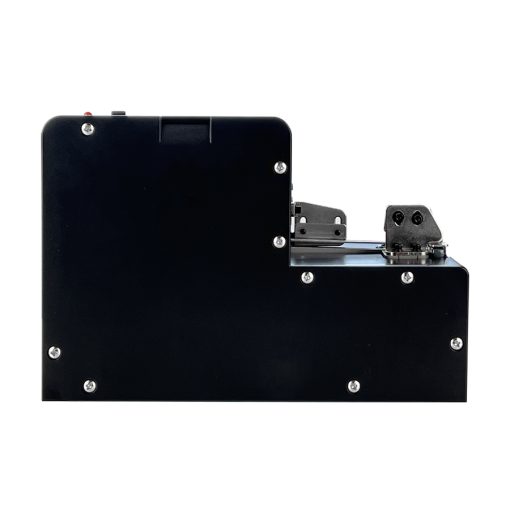

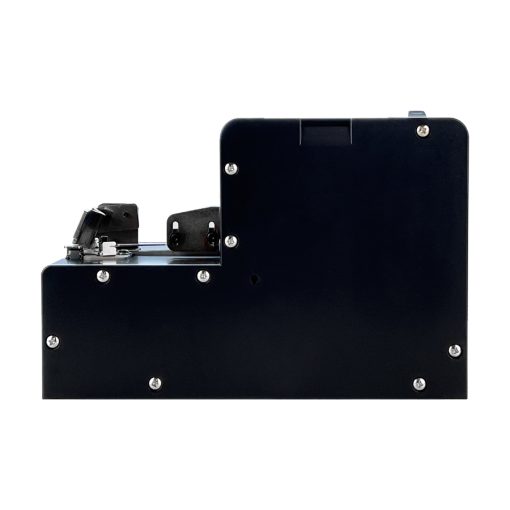

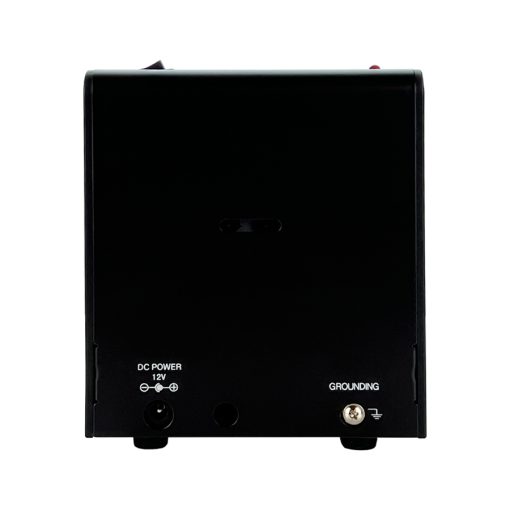

DRFF-519E Series Screw Presenter
Part# : DRFF-519E Categories: Screw Presenters, Manual Pickup, Screw Feeder, DRFF-500 Series
Technical Documents
Input | 100-240VAC |
---|---|
Output | 12VDC (AC Adapter) |
Max Screw Thread Length | 0.75 in (19 mm) |
Screw Size | M1.2 (#00), M1.4 (#0), M1.7 (#1), M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5), M3.5 (#6), M4.0 (#8), M5.0 (#10) |
Dimensions | 8.5×4.9×5.9 in (216x126x150 mm) |
Weight | 3.1 kg (6.8 lbs) |
Pick-up Type | Manual |
Hopper Size | 12.2-13.4 cu.in (200-220 cc) |
Compliance | CE Certified |
