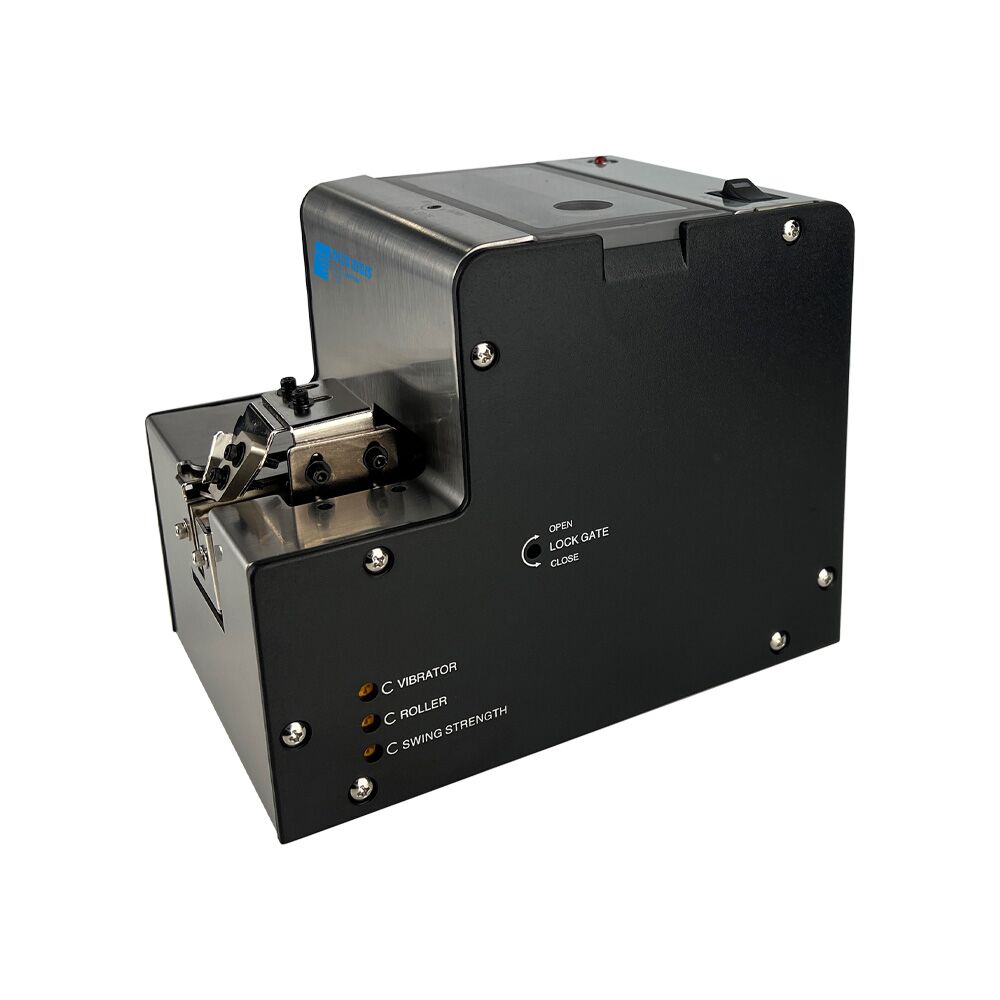

DRFF-520SS Series Screw Presenter
Screw Presenter, Adjustable Rail 1.0-5.2mm
Please contact us directly for more information! 772-465-4302 or sales@deltaregis.com
The DRFF-520SS Precision Screw Feeder incorporates an adjustable rail which accommodates screw thread diameters from 1.0-5.2mm (#0-#10). A rail adjustment kit is included with the screw presenter to facilitate quick and easy setup. Three potentiometer adjustments give the user control of feed intensity and time.
- Single rail accommodates all screw sizes
- Multiple adjustments to optimize feed rate
- Less moving parts for increased durability
- Quiet operation
| Input | 100-240VAC |
|---|---|
| Output | 15VDC (AC Adapter) |
| Max Screw Length | 0.79 in (20 mm) |
| Screw Size | M1.0-M5.2 (#000 – #10) |
| Dimensions | 4.9×7.2×5.6 in (125x183x142 mm) |
| Weight | 5.4 lbs (2.45 kg) |
| Pick-up Type | Manual |
| Hopper Size | 12.2-13.4 cu.in (200-220 cc) |
