From ToDRFF-535 Series Screw Presenter
Screw Presenter
Complete your fastening system...

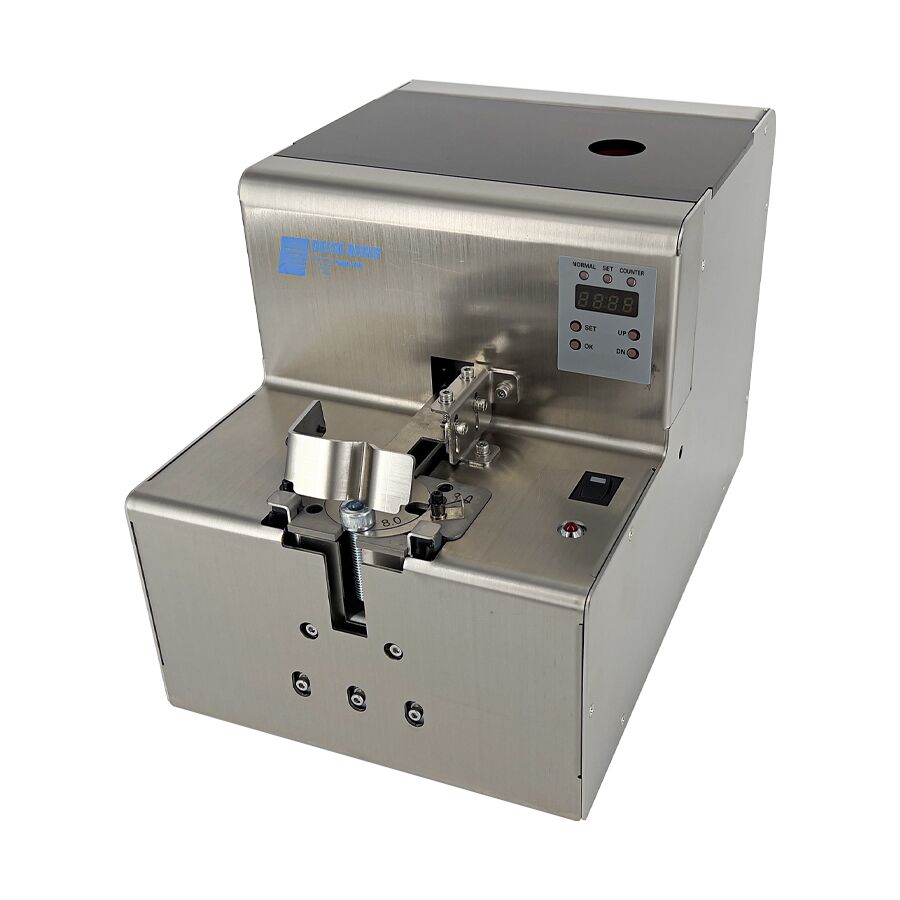

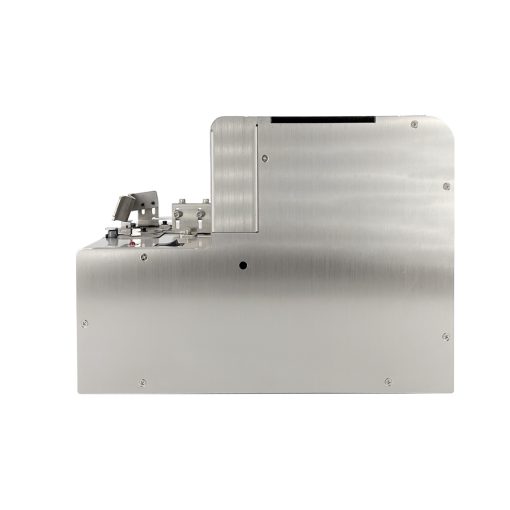

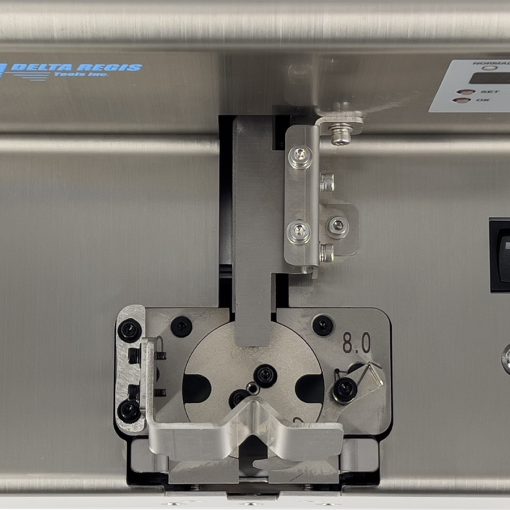

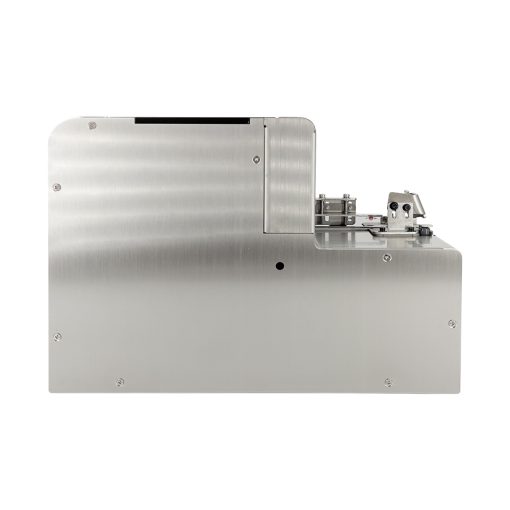

This item: DRFF-535 Series Screw Presenter
- Improve productivity – screws dispensed for easy pick-up
- Magnetic pick-up of ferrous screws
- Precise vibration control allows feeding of many different screw types and sizes
- Adjustable drum rotation timer, vibration timer, and vibration intensity
- Individual driver motors for vibration and feeding
- Auto shut-off of vibration/feed when not in use
- Quiet operation
- Simple service and set-up
- Great value – very cost effective way to increase productivity

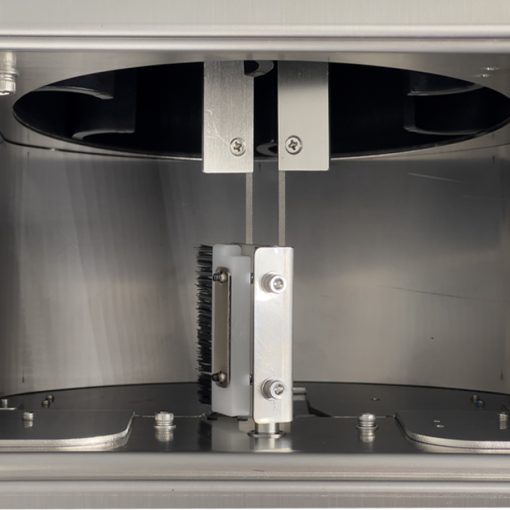

- Extra large 500cc hopper means less refilling
- Includes AC adapter, set-up tools and shims
| Input | 100-240VAC |
|---|---|
| Output | 12VDC (AC Adapter) |
| Max Screw Thread Length | 1.38 in (35 mm) |
| Screw Size | M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5), M3.5 (#6), M4.0 (#8), M5.0 (#10), M6.0, M8.0, M9.0 |
| Dimensions | 11.5 x 7.5 x 8.3 in (292.5 x 190 x 210 mm) |
| Weight | 7 kg (15.4 lbs) |
| Pick-up Type | Manual |
| Hopper Size | 30.5 cu.in (500 cc) |
| Compliance | CE Certified |
