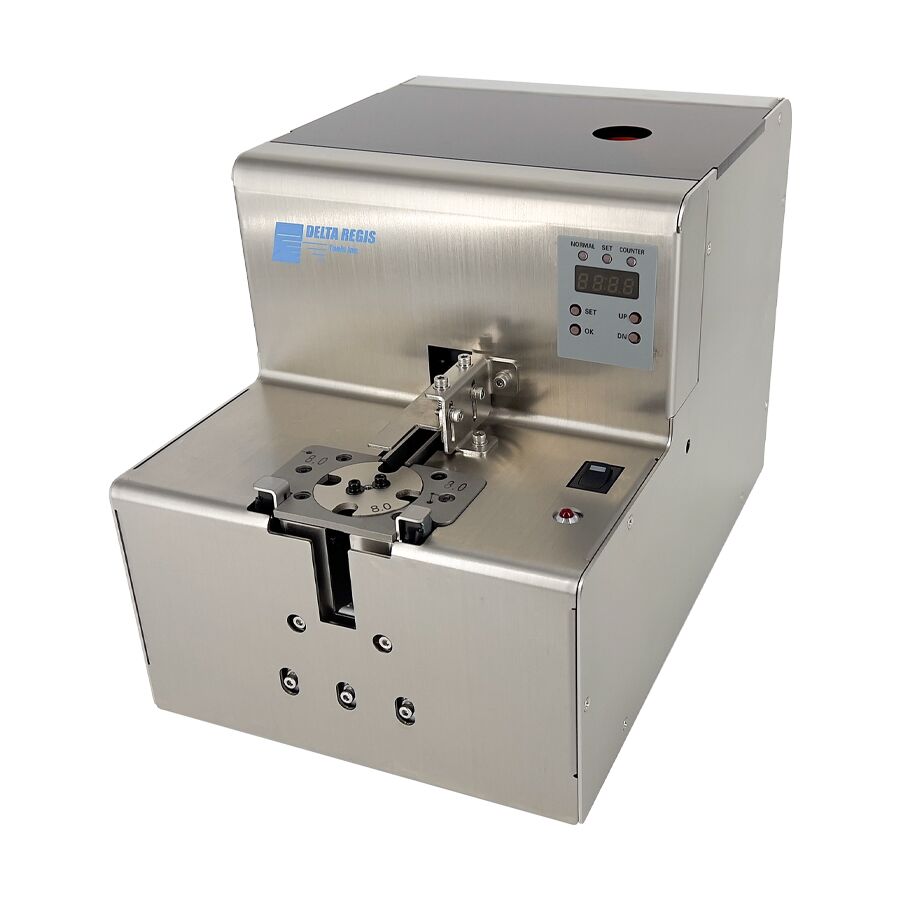

DRFF-535R Series Screw Presenter
Screw Presenter
- Ideal for robotic applications – magnetic or vacuum pick-up
- Signal output when screw is ready for pick-up/PLC counting
- Brushless driver motors for vibration and feeding
- Quiet operation
- Simple service and set-up
- Integrated screw counter with LED displays for assembly process feedback

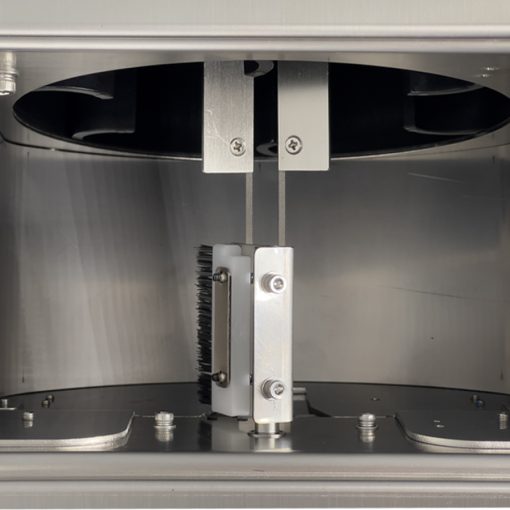

- Extra large 500cc hopper means less refilling
- Includes AC adapter, set-up tools and shims
| Input | 100-240VAC |
|---|---|
| Output | 12VDC (AC Adapter) |
| Max Screw Thread Length | 1.38 in (35 mm) |
| Screw Size | M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5), M3.5 (#6), M4.0 (#8), M5.0 (#10), M6.0, M8.0 |
| Dimensions | 11.5 x 7.5 x 8.3 in (292.5 x 190 x 210 mm) |
| Weight | 7 kg (15.4 lbs) |
| Pick-up Type | Robotic |
| Hopper Size | 30.5 cu.in (500 cc) |
| Compliance | CE Certified |
ADDITIONAL INFORMATION
