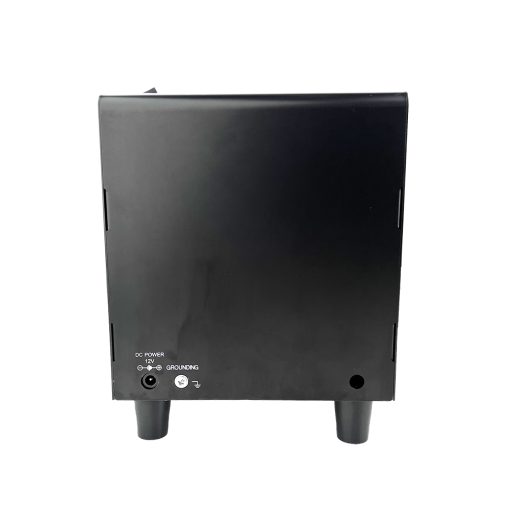

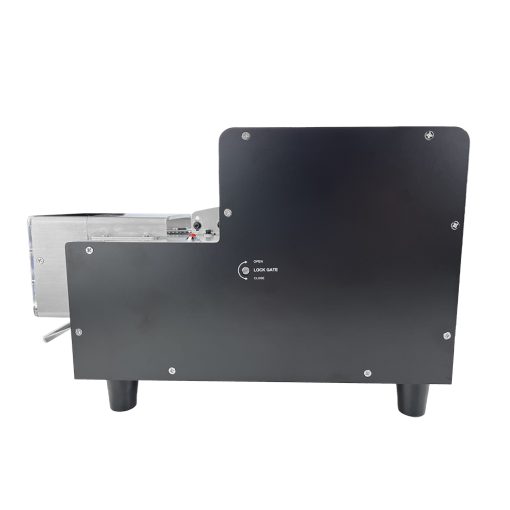

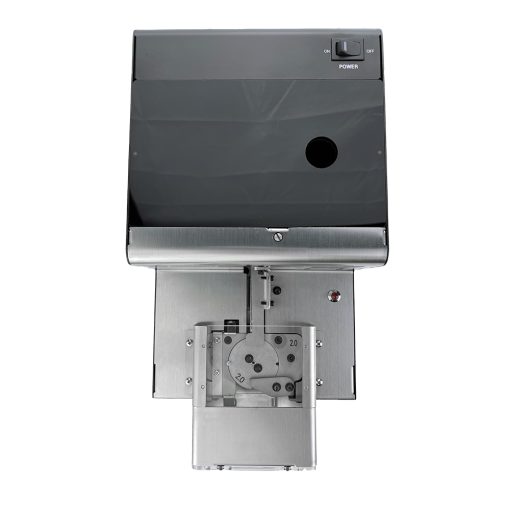

DRFF-835C Series Screw Dispenser/Counter
Screw Presenter
- Improve quality control – screws are dispensed for easy binning or bagging
- Easily program the number of screws you want to count for dispensing
- Clear plexiglass windows allow for viewing dispensed screws
- Precise programming controls allows feeding of many different screw types and sizes
- Adjustable drum rotation timer, vibration timer, and vibration intensity
- Individual driver motors for vibration, feeding and turntable operation
- Auto shut-off when not in use
- Quiet operation
- Simple service and set-up
- Great value – very cost effective way to increase productivity
- Includes AC adapter and adjustment tools
| Input | 100-240VAC |
|---|---|
| Output | 12VDC (AC Adapter) |
| Max Screw Thread Length | 1.37 in (35 mm) |
| Screw Size | M2.0 (#2), M2.3 (#3), M2.6 (#4), M3.0 (#5), M3.5 (#6), M4.0 (#8), M5.0 (#10), M6.0 (#12), M8.0, M9.0 |
| Pick-up Type | Screw Counter / Hand Dispenser |
| Hopper Size | 48.8 cu.in (800 cc) |
| Compliance | CE Certified |
