DRTQ-25-i (2.5-25 in-lbs / 0.28-2.82 Nm)
2,250.00 USD

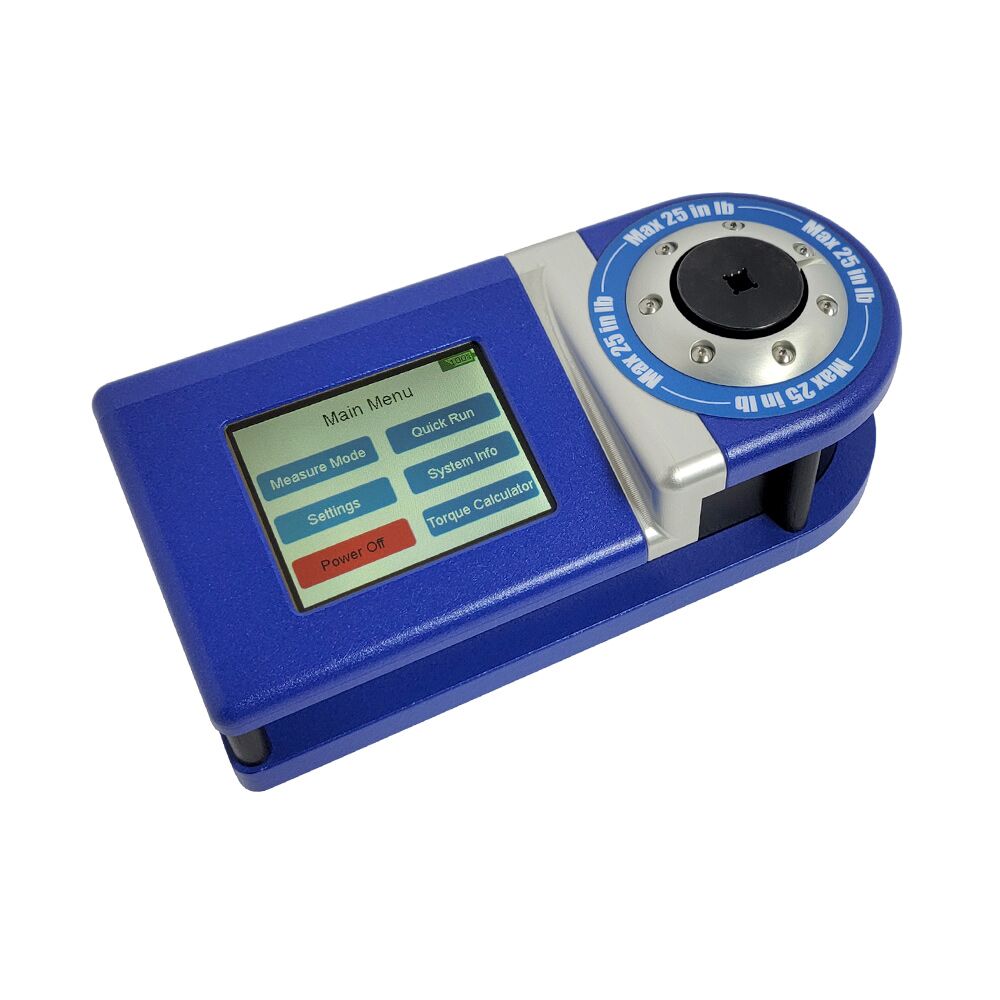

DRTQ Touch Screen Torque Tester, 2.5-25 in-lbs (0.28-2.82 Nm)
Complete your fastening system...
This item: DRTQ-25-i (2.5-25 in-lbs / 0.28-2.82 Nm) 2,250.00 USD 2,250.00 USD
1 × DRTQ-MOUNT-HT Reaction collar for bench mounting 148.50 USD
Each DRTQ Torque Tester is dead-weight calibrated with certified mass standards and arms to verify conformance to the stated accuracy of ?0.5% of indicated value (from 20-100% of full scale). A calibration certificate is included with each tester. AC Adapter, Carrying Case, User Manual, Calibration Certificate, Rundown Joint also included.
- CE Compliant
- Full color LCD touch screen
- Processes statistical calculations: CP, CPK, Sigma
- On screen statistics: Torque calculator and graphing for performance analysis
- Export data directly to an SD card
- Automatic screen rotation (level sensor flips screen between vertical and horizontal mode)
- “Quick Run” mode provides the ability to quickly audit and verify a tool
- “Measure Mode” allows users to establish acceptable tolerances – eight configurable torque test profiles available
- Eight available measurement units: in-oz, in-lbs, ft-lbs, Nm, cNm, Kgf Cm, Gf Cm, Kgf m
- Li-ion technology provides extended battery life with up to 8 hours continuous use
- Battery saving features: Sleep Mode, Back Light Timer, Automatic Shutdown
- Peak mode: For use with manual, electric, pneumatic, and cordless torque controlled tools (not for use with impact tools)
- Track Mode: For use with dial or electronic torque wrenches
- Advanced user programmable options: Auto Clear, Date/Time, Peak Time, Screen Brightness
- 2 year warranty
- Made in North America
| Input | 100-240 VAC |
|---|---|
| Output | 5 VDC, centre positive |
| Drive Size | 1/4" Square Input Drive |
| Torque Range | 2.5-25 in-lbs (0.28-2.82 Nm) |
| Dimensions | 229x102x80mm (9x4x3 in) |
| Weight | 2.7kg (6lbs) |
| Accuracy | +/- 0.5% of reading @ 20-100% full scale +/- 1% of reading @ 10-20% full scale |
