From To ESL-XTE Series
Transducerized Electric Inline Screwdrivers
(0.05-25 Nm)
(0.44-221 in-lbs)
(0.44-221 in-lbs)
The ESL-XTE Series tools work hand in hand with the DR-XTC1 Transducerized Torque Control System bringing you full control of your entire fastening process. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the controller directly or via PC with our deltaOnpoint software installed
- High precision torque transducer
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty

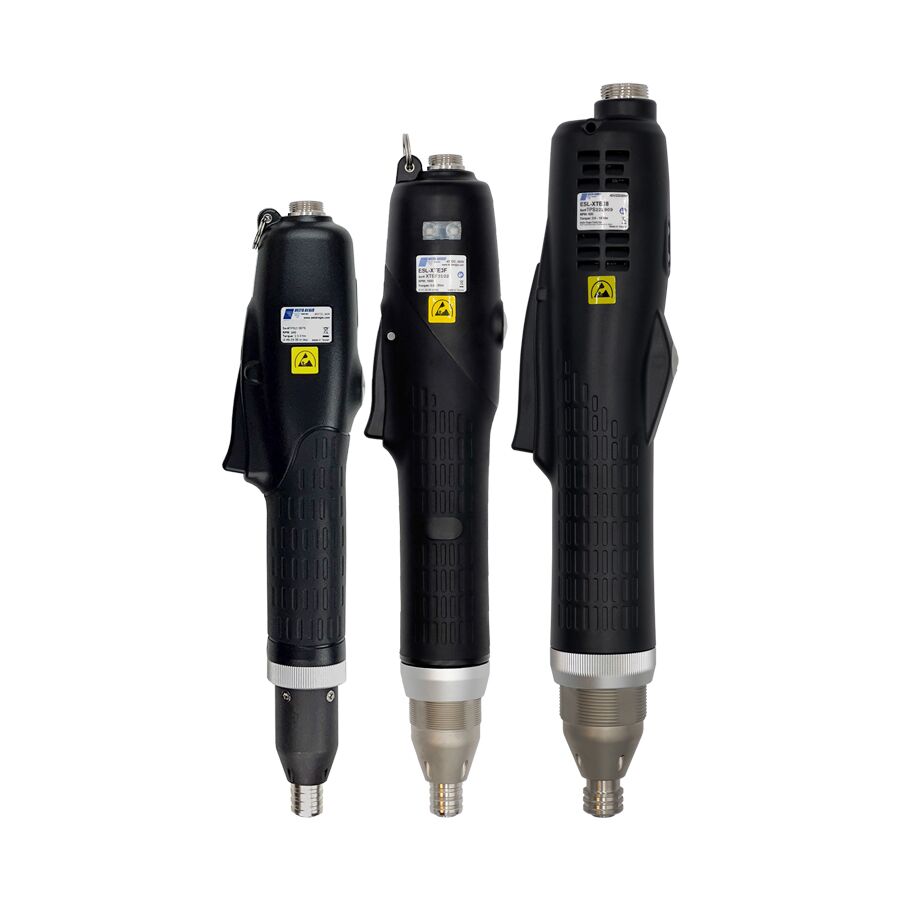

Available ESL-XTE Series Inline Transducerized Screwdrivers
Power supply required DR-XTC?sold separately
Are you looking for an Angle Control System? Click here.

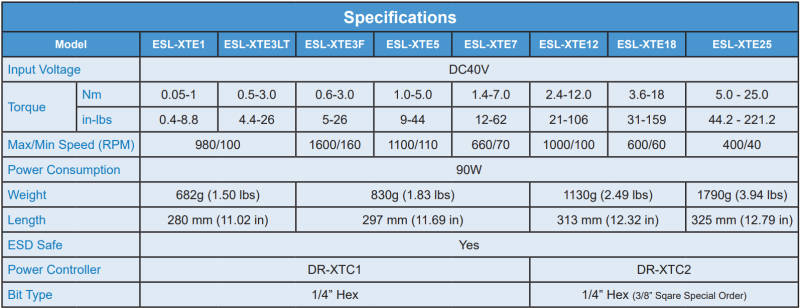

| Input Voltage | DC40V |
|---|---|
| Torque Range | 0.05-1 Nm (0.44-8.8 in-lbs), 0.5-3.0 Nm (4.4-26 in-lbs), 0.6-3.0 Nm (5-26 in-lbs), 1.0-5.0 Nm (9-44 in-lbs), 1.4-7.0 Nm (12-62 in-lbs), 2.4-12 Nm (21-106 in-lbs), 3.6-18 Nm (31-159 in-lbs), 5.0-25 Nm (44-221 in-lbs) |
| Power Consumption | 90W |
| Weight | 830g (1.83 lbs) |
| Length | 297 mm (11.69 in) |
| ESD Safe | Yes |
| Drive Type | 1/4" Hex |
