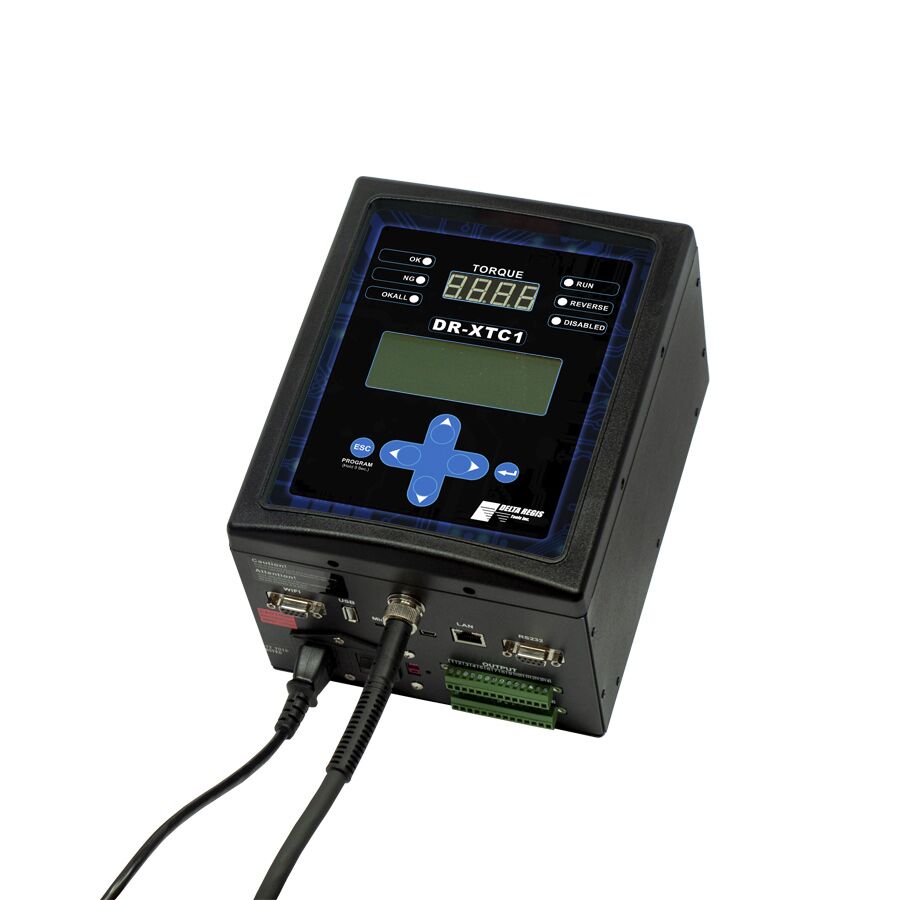

DR-XTC
Transducerized Torque Control System
[video_lightbox_youtube video_id=”IfPxhWczBBg&&rel=0″ width=”800″ height=”480″ auto_thumb=”1″]
Included with the purchase of the DR-XTC Controller!!
The DR-XTC Controller allows you to be in full control of your entire fastening process. Easily setup multiple tightening parameters like speed, time, thread, direction & torque through the controller directly or via PC with deltaOnpoint software installed. Create multiple jobs for different assembly stages and quickly switch between desired job dynamically. Tightening data can be transferred out using the built-in Ethernet Module and can also be stored locally on an SD card to avoid data loss due to untimely internet connectivity issues.
- High precision torque transducer
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- SD card slot for temporary data storage (Supports up to 32GB)
- Save up to 250 sequences
- Use up to 5 steps per screw tightening
- Save up to 99 steps
- Use up to 50 sequences per job
- Save up to 50 jobs
Please note: The DR-XTC Controller is only compatible with appropriate ESL-XTE Series Drivers
| Input Voltage | AC 100-120V / 220-240V 50-60Hz |
|---|---|
| I/O Output Voltage | DC 24V 50mA / 12V 100mA |
| Batch Count | 1-99 |
| Count Method | Count Up/ Count Down |
| Torque Detection Value | Based on Screwdriver Specifications |
| Screw Thread Number Detection | 0.0-999.9 |
| External Connection Input | Start/Forward/Reverse/Disable/Confirm |
| External Connection Output | OK/NG/OK ALL/Start/Reverse |
| Serial Interface | RS-232X2, Micro SD, LAN |
| External Dimensions | 185 x 241.4 x 146.8 mm (7.3 x 9.5 x 5.8") |
| Weight | 3.7Kg (8.2 lbs) |
| Applicable DC screwdriver model | ESL-XTE1/3/5/7 Series, ESL-XTE12/18 Series |
