CESL810-ESD Series(0.02-0.35 Nm)(0.2-3.1 in-lbs)

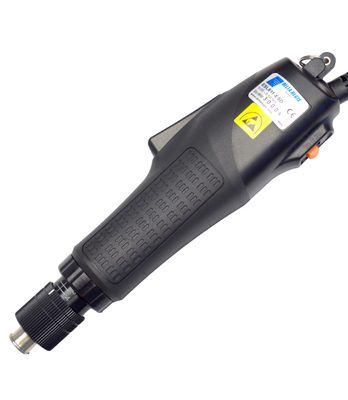

CESL811 Series
(0.05-0.69 Nm)
(0.4-6.2 in-lbs)

Part# : CESL811 Categories: 0-1.0 Nm (0-8.8 in-lbs), Electric Screwdrivers, In-line Screwdrivers, Premium Brushless

• Precise torque control, low torque reaction
• Quiet brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
• CE, RoHS Compliant
• Power supply required – sold separately

Start Type	Lever
Torque Range	0.4-6.2 in.lbs (0.05-0.69 Nm)
Speed (RPM)	1000/700
Style	Inline
Input	32-24VDC
Drive Size	1/4" Hex
Length	185 mm
Diameter	32 mm
Weight	385 g
Compliance	CE / RoHS
ESD Safe/Non ESD Safe	ESD Safe, Non ESD Safe
