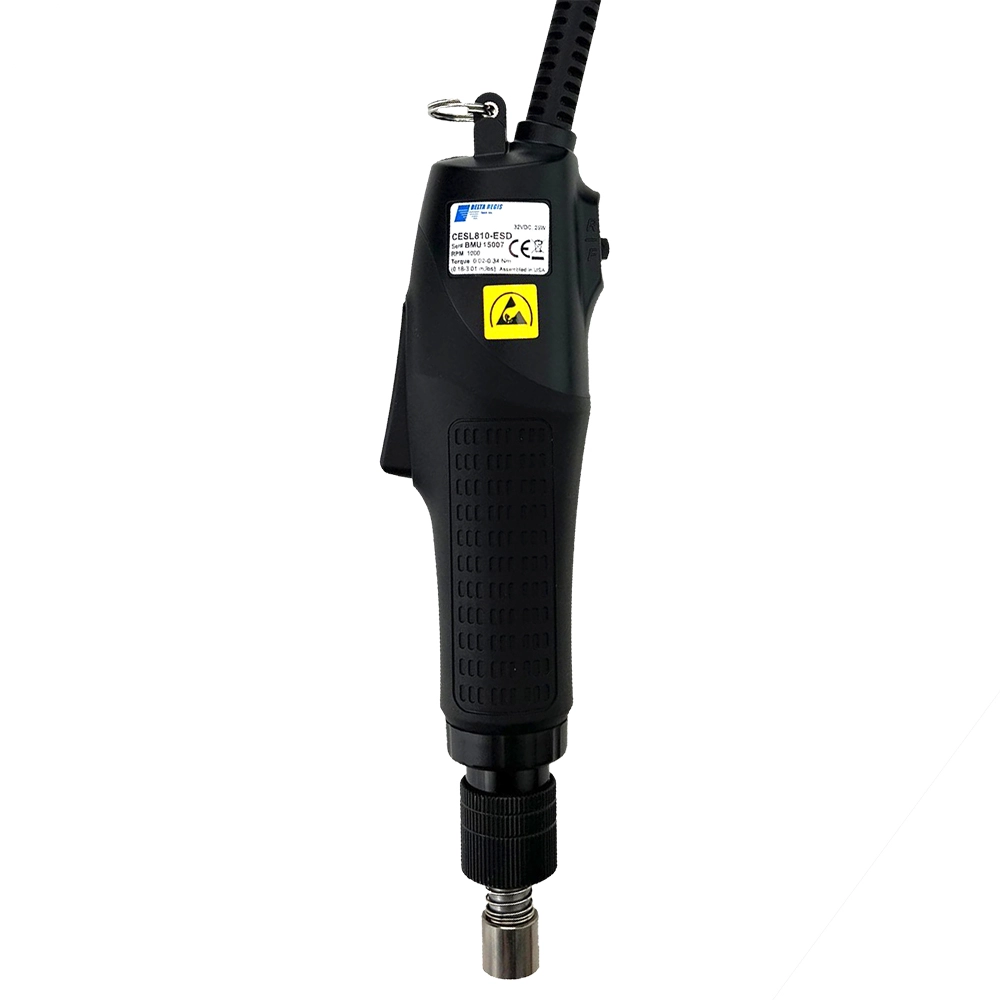

CESL812-ESD Series
Electric Torque Screwdriver

(0.10-0.98 Nm)
(0.9-8.7 in-lbs)

Part# : CESL812-ESD-Series Categories: , , ,

Not sure if this product is for you?

Test Drive

Or Let Delta Regis Help!

Product Application Form

Complete your fastening system...
CESL812-ESD SeriesElectric Torque Screwdriver(0.10-0.98 Nm)(0.9-8.7 in-lbs)
BECT620C (Hi/Lo Spd)
BECT820(N) (Hi/Lo Spd)
BECT832-SSO-V4.0
Tool Balancer DR-TB1.5K (1.1-3.3 lbs)
This item: CESL812-ESD Series
Electric Torque Screwdriver

(0.10-0.98 Nm)
(0.9-8.7 in-lbs)
1 × BECT620C (Hi/Lo Spd)
Clear
Standard power supply for 1000 RPM model (CESL812-ESD)
1 × BECT820(N) (Hi/Lo Spd)
Clear
Standard power supply for 500 RPM model (CESL812S-ESD)
1 × BECT832-SSO-V4.0
Clear
Upgraded Power Supply - Batch Count & I/O (All Models)
1 × Tool Balancer DR-TB1.5K (1.1-3.3 lbs)44.00 USD

CESL812-ESD Series Electric Torque Screwdriver

  • Precise torque control, low torque reaction
  • Quiet brushless DC motor means no carbon dust
  • Compact body design results in exceptional maneuverability and operator comfort
  • Less heat build-up and higher duty cycle capabilities than conventional brush motors
  • 3 year motor warranty
  • Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
  • CE, RoHS Compliant
  • Power supply required – sold separately

Inline Electric Torque Screwdrivers provide excellent ergonomic benefits and increase efficiency to most assembly applications. Our inline electric torque controlled screwdrivers are offered in both AC direct plug-in a well as DC with external power supply and are offered in multiple torque ranges, start types & operating speeds.

The Delta Regis CESL8 Series Premium Brushless Screwdrivers provide the ultimate combination of ergonomics, precision, performance and environmental cleanliness to the installation of fasteners. The quiet, brushless DC motor does not create the carbon dust generated by the brushes in a conventional DC motor, and its low power consumption results in a tool that runs cooler, even under demanding applications.

Class

32V Compact Shut-off
Start Type

Lever, Push
Torque Range

0.9-8.7 in-lbs (0.10-0.98 Nm), 1.8-8.7 in-lbs (0.2-0.98 Nm)
Speed (RPM)

280, 1000/700
Style

Inline
Input

32-24VDC
Drive Size

1/4" Hex
Length

185 mm (7.3 in), 230 mm (9.0 in) – CESL812P-ESD Only
Diameter

32 mm (1.3 in)
Weight

385 g (0.8 lbs), 310 g (0.7 lbs) – CESL812P-ESD Only
Compliance

CE / RoHS
ESD Safe/Non ESD Safe

ESD Safe
