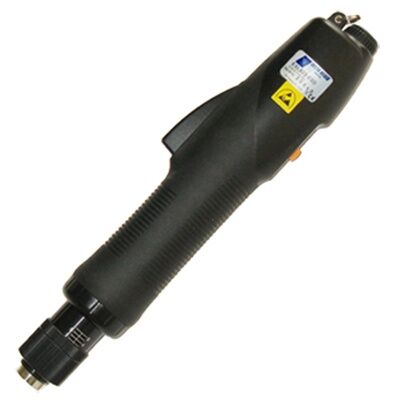

CESL823 Series
(0.15-1.18 Nm)
(1.3-10.5 in-lbs)

Part# : CESL823 Categories: 0-1.0 Nm (0-8.8 in-lbs), Electric Torque Screwdrivers, In-line Screwdrivers, Premium Brushless

• Precise torque control, low torque reaction
• Quiet brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
• CE, RoHS Compliant
• Power supply required – sold separately

Class	32V Standard Shut-off
Start Type	Lever, Push
Torque Range	1.3-10.5 in-lbs (0.15-1.18 Nm)
Speed (RPM)	1000/700, 2000
Style	Inline
Input	32-24VDC
Drive Size	1/4" Hex
Length	245 mm (9.6 in)
Diameter	36 mm (1.4 in)
Weight	520 g (1.1 lbs)
Compliance	CE / RoHS
ESD Safe/Non ESD Safe	ESD Safe, Non ESD Safe
