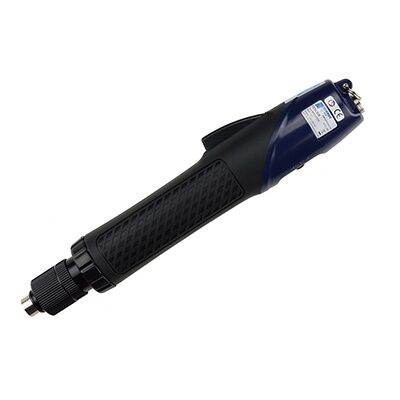

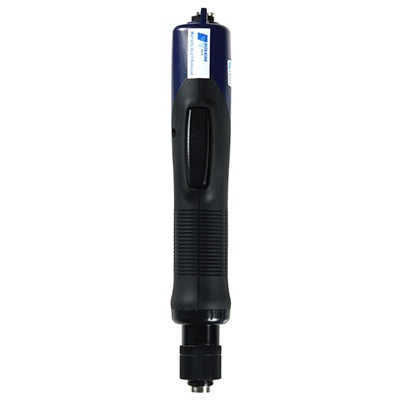

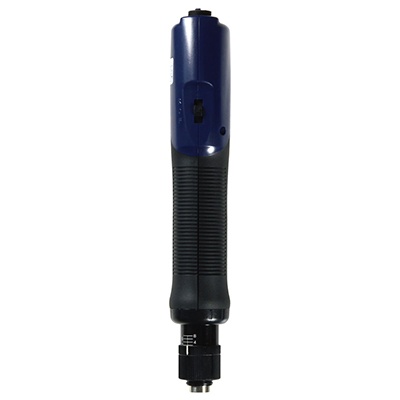

CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)
CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)
CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)
CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)
CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)

Torque Conversion Calculator

From To

CESL824 Series
Electric Torque Screwdriver

(0.29-1.86 Nm)
(2.6-16.5 in-lbs)

Part# : CESL824-Series Categories: , , , , ,

Not sure if this product is for you?

Test Drive

Or Let Delta Regis Help!

Product Application Form

Complete your fastening system...
CESL824 SeriesElectric Torque Screwdriver(0.29-1.86 Nm)(2.6-16.5 in-lbs)
BECT620C (Hi/Lo Spd)
BECT820(N) (Hi/Lo Spd)
BECT832-SSO-V4.0
Tool Balancer DR-TB1.5K (1.1-3.3 lbs)
This item: CESL824 Series
Electric Torque Screwdriver

(0.29-1.86 Nm)
(2.6-16.5 in-lbs)
1 × BECT620C (Hi/Lo Spd)
Cordset
Clear
Standard power supply for 1000 RPM model (CESL824 Series)
1 × BECT820(N) (Hi/Lo Spd)
Cordset
Clear
Standard power supply for 500 RPM model (CESL824S Series)
1 × BECT832-SSO-V4.0
Cordset Type
Clear
Upgraded Power Supply - Batch Count & I/O (All Models)
1 × Tool Balancer DR-TB1.5K (1.1-3.3 lbs) 44.00 USD
  • Precise torque control, low torque reaction
  • Quiet brushless DC motor means no carbon dust
  • Compact body design results in exceptional maneuverability and operator comfort
  • Less heat build-up and higher duty cycle capabilities than conventional brush motors
  • 3 year motor warranty
  • Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
  • CE, RoHS Compliant
  • Power supply required – sold separately

Class

32V Standard Shut-off
Start Type

Lever, Push
Torque Range

2.6-16.5 in-lbs (0.29-1.86 Nm)
Speed (RPM)

500, 1000/700, 2000
Style

Inline
Input

32-24VDC
Drive Size

1/4" Hex
Length

245 mm (9.6 in)
Diameter

36 mm (1.4 in)
Weight

520 g (1.1 lbs)
Compliance

CE / RoHS
ESD Safe/Non ESD Safe

ESD Safe, Non ESD Safe
