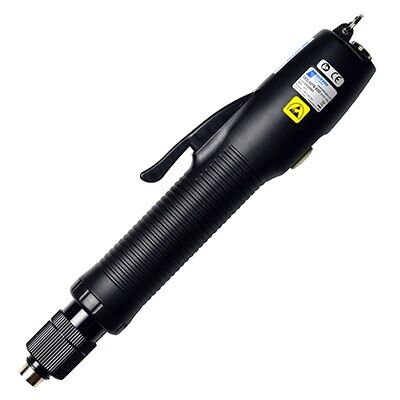

CESL827B-ESD Series
(0.98-2.94 Nm)
(8.7-26.0 in-lbs)

Part# : CESL827B-ESD Categories: 1.0-3.0 Nm (8.8-26 in-lbs), Electric Torque Screwdrivers, In-line Screwdrivers, Premium Brushless

• Precise torque control, low torque reaction
• Quiet brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
• CE, RoHS Compliant
• Power supply required – sold separately

Class	32V Standard Shut-off
Start Type	Lever, Push
Torque Range	8.7-26.0 in-lbs (0.98-2.94 Nm)
Speed (RPM)	1200/900
Style	Inline
Input	32-24VDC
Drive Size	1/4" Hex
Length	278 mm (10.9 in)
Diameter	39.5 mm (1.6 in)
Weight	800 g (1.8 lbs)
Compliance	CE / RoHS
