? New stainless steel housing!
? Ideal for robotic applications ? magnetic or vacuum pick-up
? Signal output when screw is ready for pick-up/PLC counting
? Brushless driver motors for vibration and feeding
? Quiet operation
? Simple service and set-up

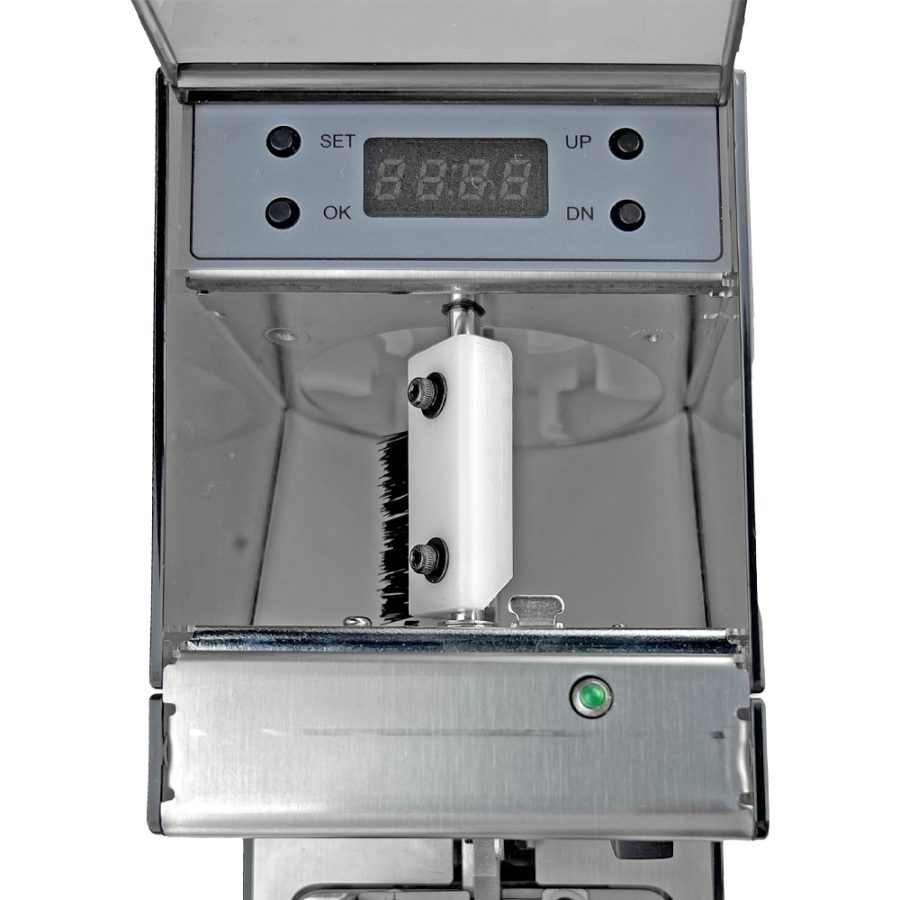

? Integrated screw counter with LED displays for assembly process feedback
? Small size ? does not clutter work space
? Includes AC adapter, set-up tools and shims

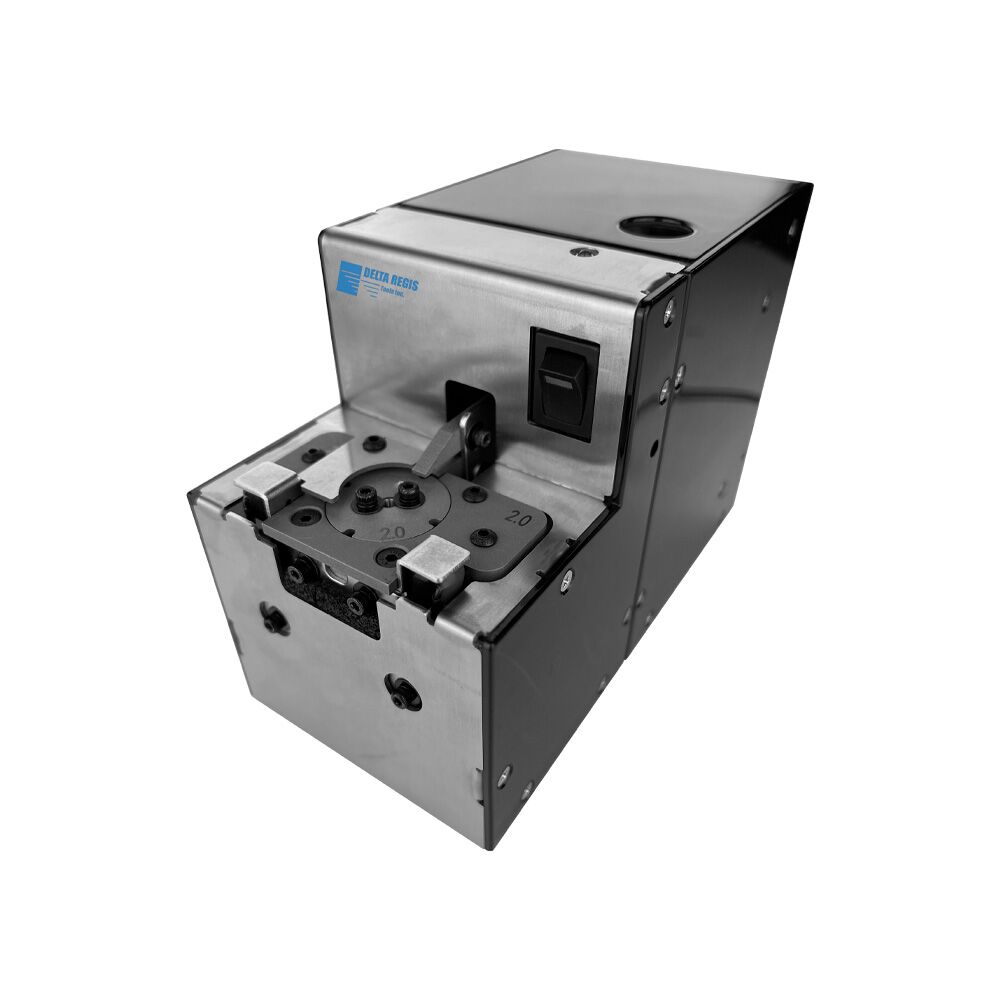

DRFF-208R Series Compact Screw Presenter
Part# : DRFF-208R Categories: DRFF-200 Series, Robotic Pickup, Screw Feeder, Screw Presenters
Input | 100-240VAC |
---|---|
Output | 12VDC (AC Adapter) |
Max Screw Thread Length | 0.31 in (8 mm) |
Dimensions | 6.3×3.2×4.4 in (160x82x112 mm) |
Weight | 1.46 kg (3.2 lbs) |
Screw Size | M0.8 (#000), M1.0 (#00), M1.2 (#00), M1.4 (#0), M1.7 (#1), M2.0 (#2) |
Pick-up Type | Robotic |
Hopper Size | 6.1-6.7 cu.in (100-110 cc) |
Compliance | CE Certified |
