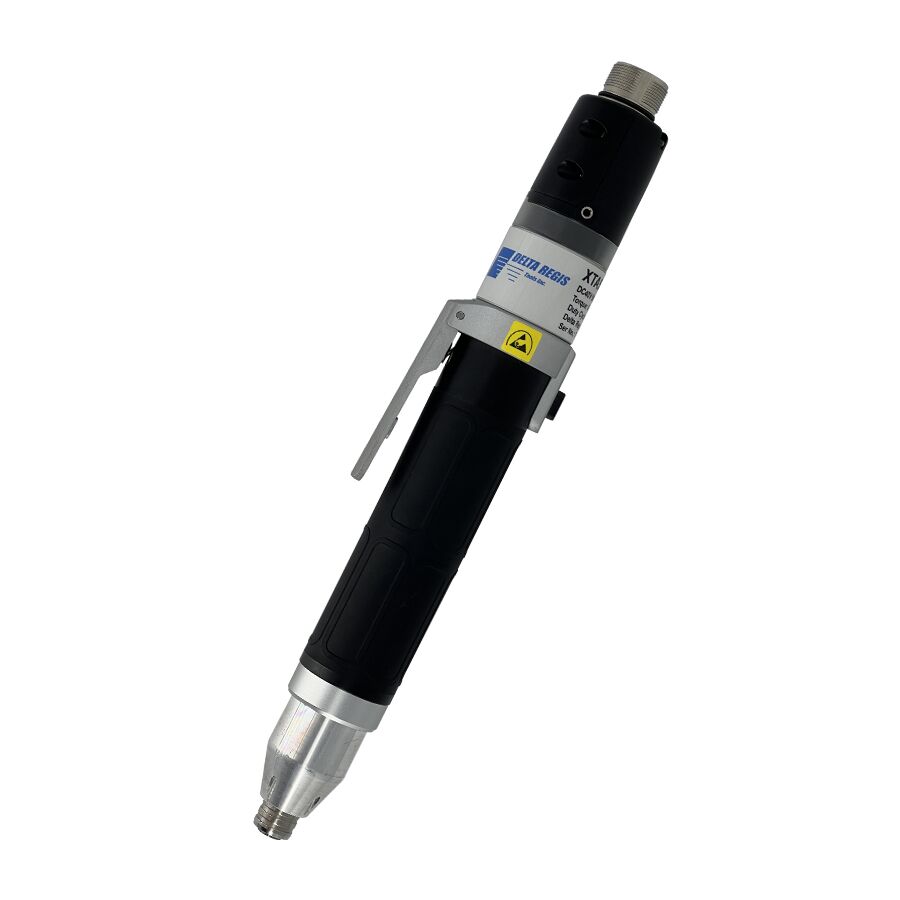

ESL-XTA Series
Transducerized Electric Inline Screwdrivers with Angle Encoder
(0.1-25 Nm)
(0.9-221.2 in-lbs)
(0.9-221.2 in-lbs)
The ESL-XTA Series tools work hand in hand with the XTCA Transducerized Torque & Angle Control System bringing you full control of your entire fastening process. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the convenient and user friendly touch screen HMI on controller itself or via PC with our deltaOnpoint software installed
- High precision torque transducer
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust

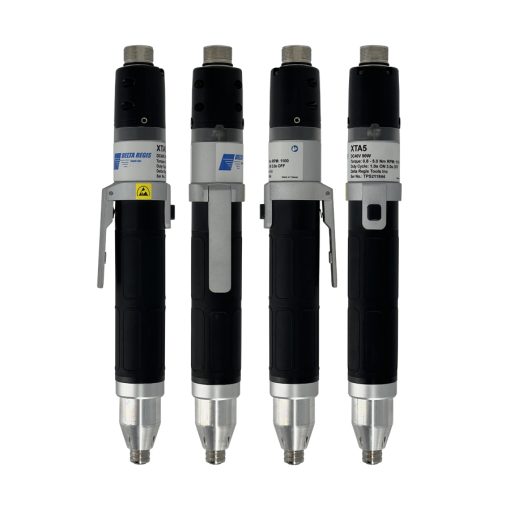

- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty

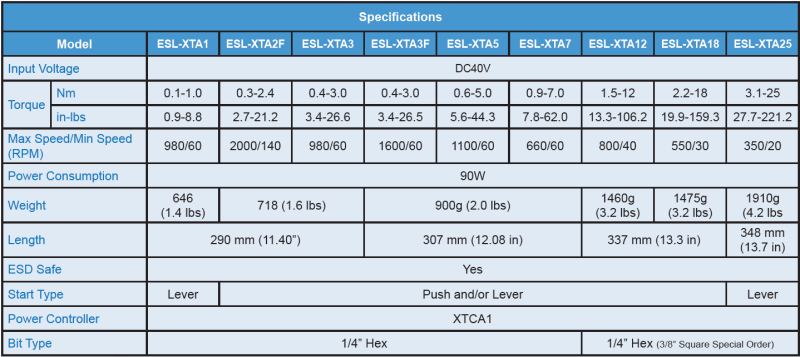

Available ESL-XTA Series Inline Transducerized Screwdrivers with Angle Encoder
Power supply required XTCA?sold separately
| Input Voltage | DC40V |
|---|---|
| Torque Range | 0.1-1 Nm (0.9-8.8 in-lbs), 0.3-2.4 Nm (2.7-21.2 in-lbs), 0.4-3.0 (3.4-26.6), 0.6-5.0 Nm (5.6-44.3 in-lbs), 0.9-7.0 Nm (7.8-62.0 in-lbs) |
| Power Consumption | 90W |
| Weight | 646 (1.42 lbs), 718 (1.58 lbs), 900g (1.98 lbs) |
| Length | 290 mm (11.40”), 307 mm (12.08 in) |
| ESD Safe | Yes |
| Drive Type | 1/4" Hex |
