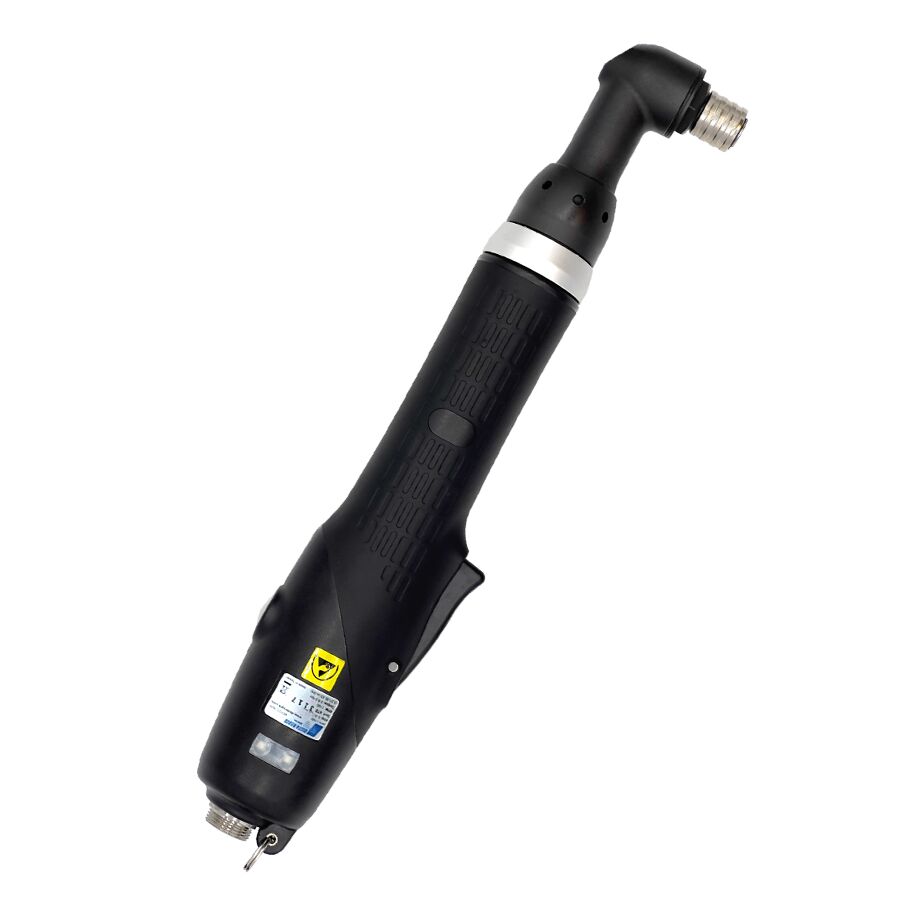

ESL-XTE/RAH Series
Transducerized Right Angle Electric Screwdrivers
(0.6-25 Nm)
(5.3-221 in-lbs)
(5.3-221 in-lbs)
The ESL-XTE/RAH Series tools work hand in hand with the DR-XTC Transducerized Torque Control System bringing you full control of your entire fastening process an offers the added convenience of a right angle orientation. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the controller directly or via PC with our deltaOnpoint software installed
- High precision torque transducer
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
Available ESL-XTE Series Right Angle Transducerized Screwdrivers
Power supply required DR-XTC ?sold separately
| Input Voltage | DC40V |
|---|---|
| Torque Range | 0.6-3.0 Nm (5-26 in-lbs), 1.0-5.0 Nm (9-44 in-lbs), 1.4-7.0 Nm (12-62 in-lbs), 2.4-12.0 Nm (21-106 in-lbs), 3.6-18.0 Nm (32-159 in-lbs), 5.0-25.0 Nm (44-221 in-lbs) |
| Power Consumption | 90W |
| Weight | 1150g (2.5 lbs) |
| Length | 330 mm (13 in) |
| ESD Safe | Yes |
| Bit Type | 1/4" Hex |
