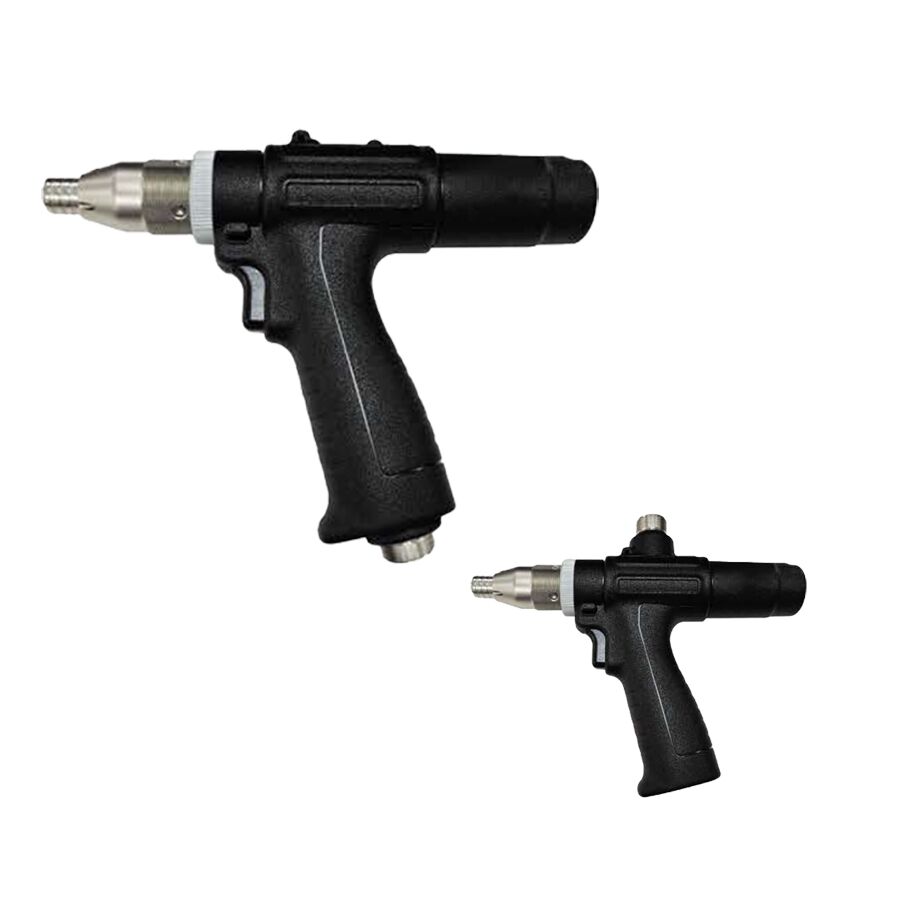

ESP-XTA Series Pistol Transducer Screwdrivers
(0.1 – 3.0 Nm)
(0.9 – 26.6 in-lbs)
(0.9 – 26.6 in-lbs)
The ESP-XTA Series tools work hand in hand with the XTCA Transducerized Torque & Angle Control System bringing you full control of your entire fastening process. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the convenient and user friendly touch screen HMI on controller itself or via PC with our deltaOnpoint software installed
- High precision torque transducer
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
Available ESP-XTA Series Pistol Transducerized Screwdrivers
Power supply required DR-XTCA sold separately
Are you looking for a Torque Control System? Click here.

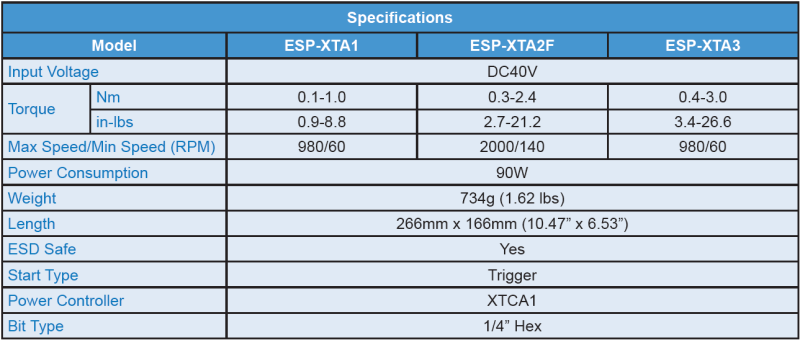

| Input Voltage | DC40V |
|---|---|
| Torque Range | 0.1-1.0 Nm (0.9-8.8 in-lbs), 0.3-2.4 Nm (2.7-21.2 in-lbs), 0.4-3.0 Nm (3.4-26.6 in-lbs) |
| Power Consumption | 90W |
| Weight | 734g (1.62 lbs) |
| Length | 256 mm (10 in) |
| ESD Safe | Yes |
| Drive Type | 1/4” Hex (3/8” Square Drive – Add Suffix “-SQ”) |
