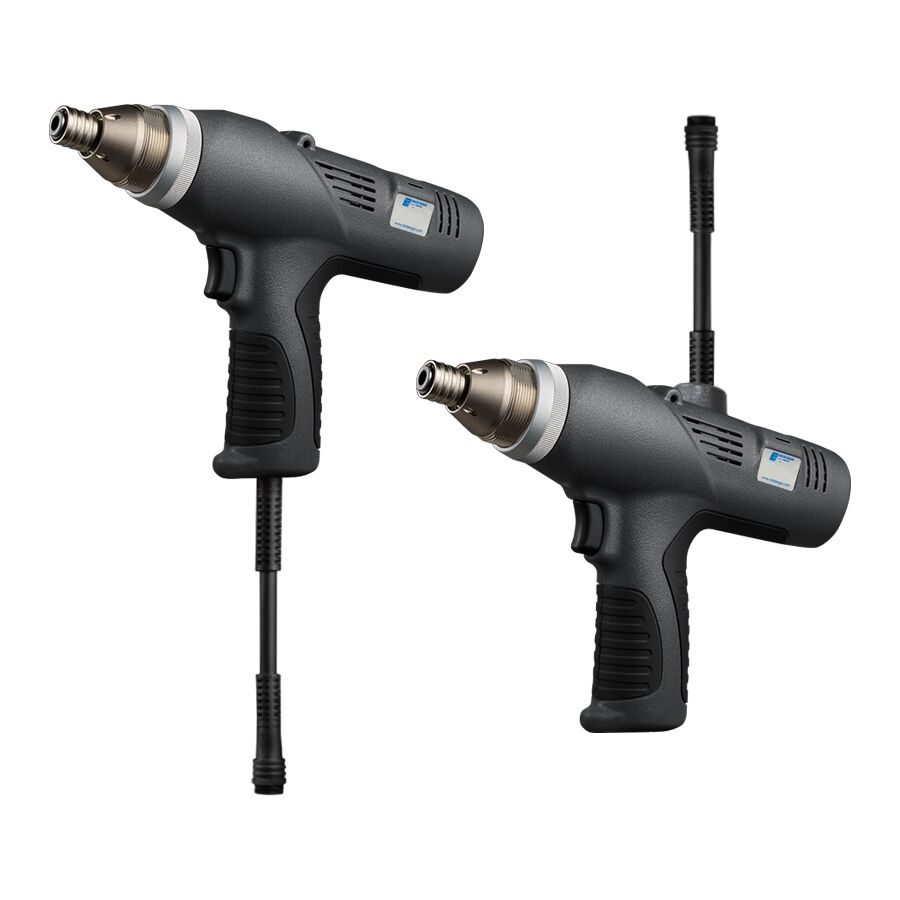

ESP-XTE Series
Transducerized Pistol Screwdrivers
(1.0 -12 Nm)
(9 – 100 in-lbs)
(9 – 100 in-lbs)
The ESP-XTE Series Pistol tools work hand in hand with the DR-XTC1 Transducerized Torque Control System bringing you full control of your entire fastening process. These tools have multiple programmable parameters like speed, time, thread, direction & torque through the controller directly or via PC with our deltaOnpoint software installed
- High precision torque transducer
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Can be programmed for multiple start modes
- Lever Start
- Push Start
- Lever + Push Start
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
Available ESP-XTE Series Inline Transducerized Screwdrivers
Power supply required DR-XTC?sold separately
Are you looking for an Angle Control System? Click here.

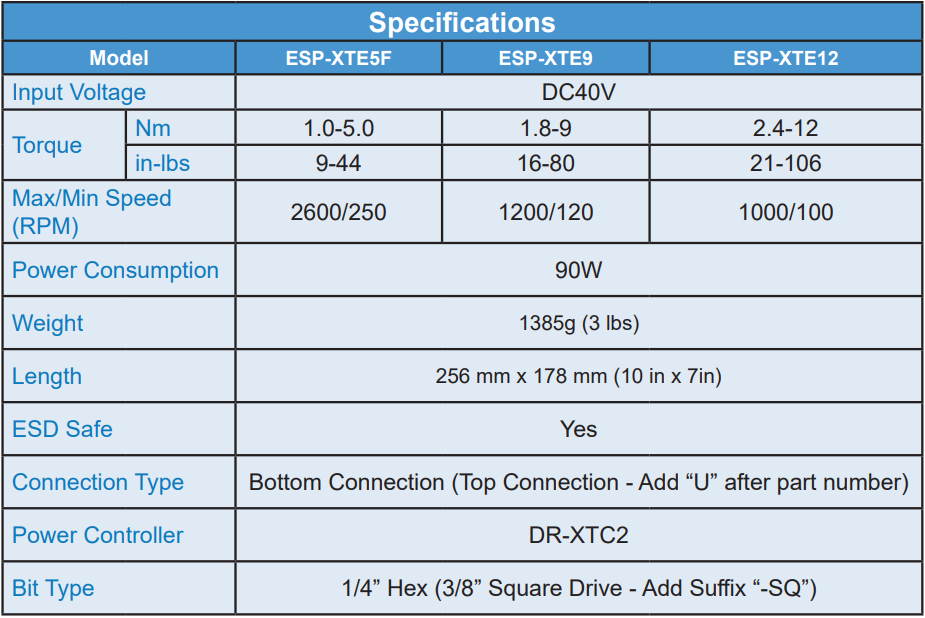

| Input Voltage | DC40V |
|---|---|
| Torque Range | 1.0-5.0 Nm (9-44 in-lbs), 1.8-9 Nm (16-80 in-lbs), 2.4-12 Nm (21-106 in-lbs) |
| Power Consumption | 90W |
| Weight | 1385g (3 lbs) |
| Length | 256 mm (10 in) |
| ESD Safe | Yes |
| Drive Type | 1/4” Hex (3/8” Square Drive – Add Suffix “-SQ”) |
