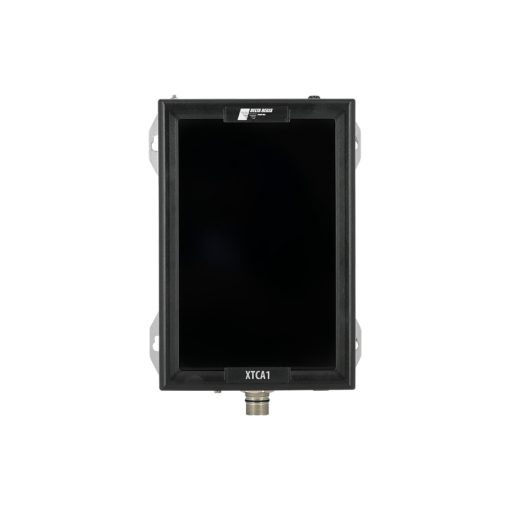

XTCA
Transducerized Torque & Angle Control System

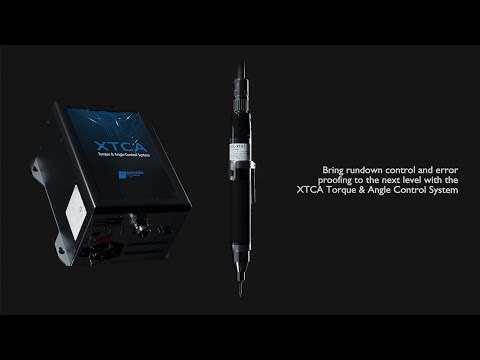

[video_lightbox_youtube video_id=”gnvZpDPe1xE&rel=0″ width=”800″ height=”480″ auto_thumb=”1″]

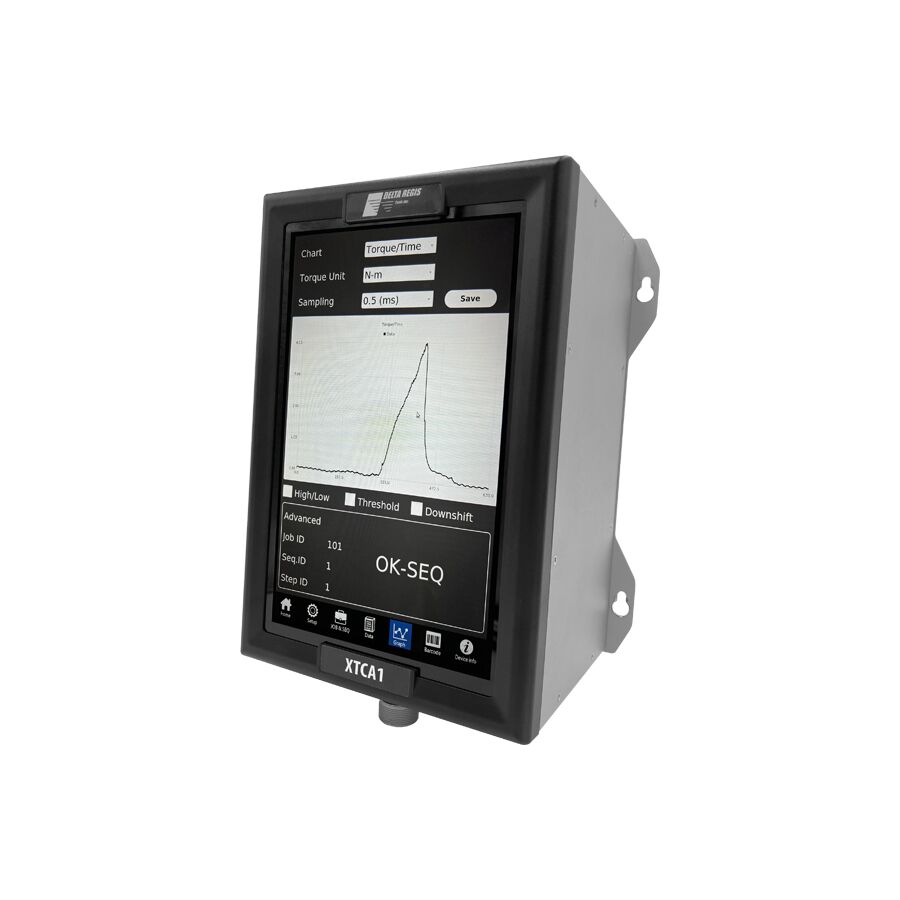

The XTCA Controller gives you next level control of your entire fastening process. Easily setup multiple tightening parameters like speed, time, thread, direction, torque and angle directly on the user friendly touch screen HMI. Create multiple jobs for different assembly stages and quickly switch between desired job dynamically. Tightening data can be transferred out using the built-in Ethernet Module via Modbus TCP protocol.
- High precision torque transducer
- High resolution angle encoder (1Ā° – 30600Ā°)
- Internal device storage 1 GB (Save up to 1,000,000 tightening data files)
- Save up to 99 jobs in normal mode and 70 jobs in advanced mode
- Program up to 99 sequences per job in normal mode and 50 sequences per job in advanced mode
- Program up to 8 unique rundown steps per sequence
- Export tightening data and job profiles via USB memory stick or FTP
- Customizable I/O for PLC integration
- Modbus RTU/TCP Communication Protocol
Please note: The XTCA Controller is only compatible with appropriate ESL-XTA Series Drivers
Ā

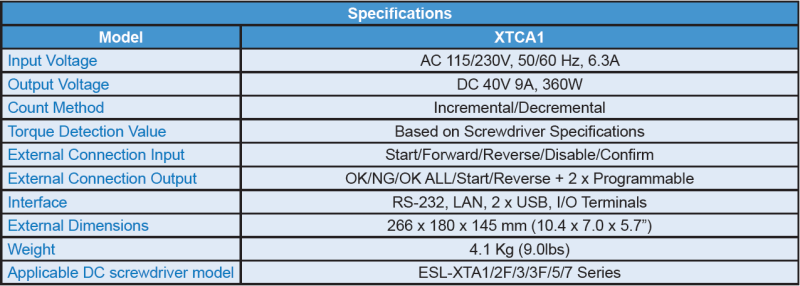

| Input Voltage | AC 100-120V / 220-240V 50-60Hz |
|---|---|
| Output Voltage | DC 40V 9A, 360W |
| Count Method | Count Up/ Count Down |
| Torque Detection Value | Based on Screwdriver Specifications |
| External Connection Input | Start/Forward/Reverse/Disable/Confirm |
| External Connection Output | OK/NG/OK ALL/Start/Reverse + 2 x Programmable |

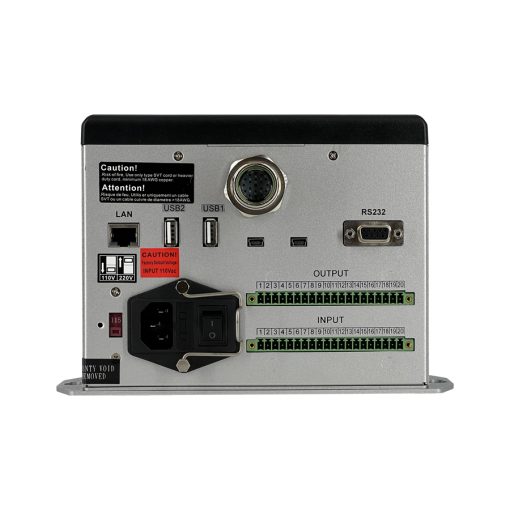

| Serial Interface | RS-232, LAN, 2 x USB, I/O Terminals |
| External Dimensions | 266 x 180 x 145 mm (10.4 x 7.0 x 5.7ā) |
| Weight | 4.1 Kg (9.0lbs) |
| Applicable DC screwdriver model | ESL-XTA1/3(F)/5/7 Series |
