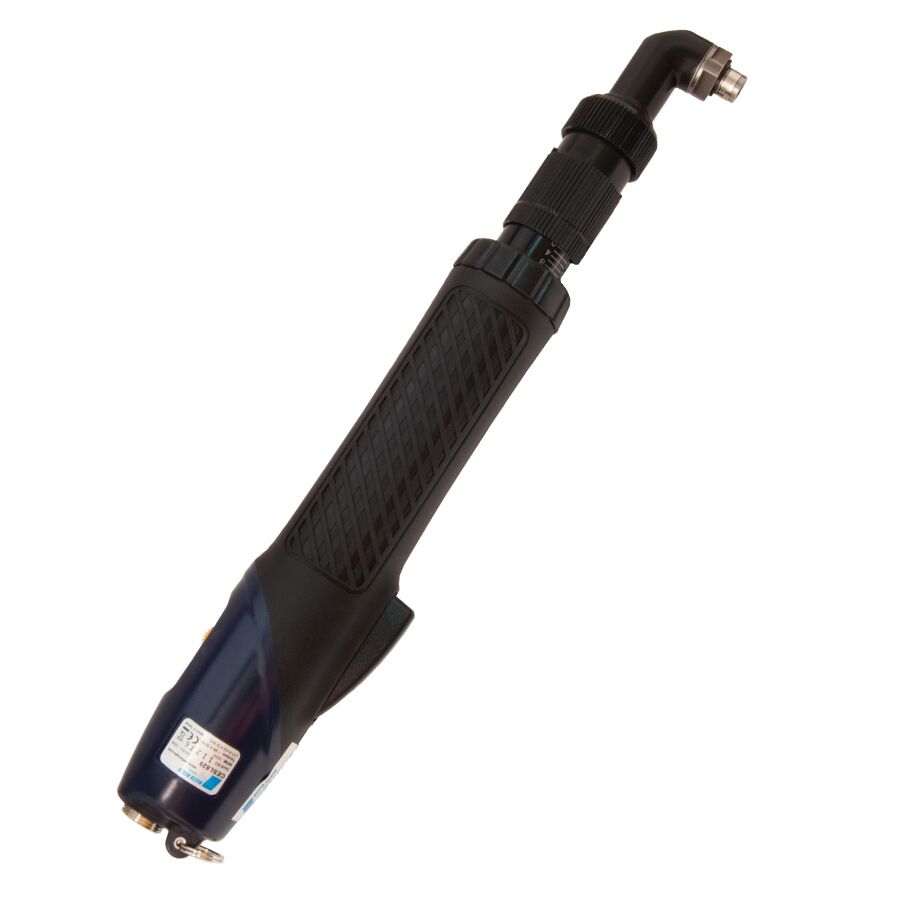

CESL829/RA Series
Electric Torque Screwdriver
(1.96-3.61 Nm)
(17.4-32 in-lbs)
(17.4-32 in-lbs)
- Precise Torque Control, Low Torque Reaction
- Quiet, Brushless DC motor means no carbon dust
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
- Screwdriver includes an accessory pistol grip, torque lock sleeve and a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller req’d – sold separately)
- CE, RoHS Compliant
| Class | 40V Standard Shut-off |
|---|---|
| Start Type | Lever |
| Torque Range | 17.4-32 in-lbs (1.96-3.61 Nm) |
| Speed (RPM) | 1000 |
| Drive Size | 1/4" Hex |
| Length | 393 mm (15.5 in) |
| Diameter | 38.9 mm (1.5 in) |
| Weight | 0.77 kg (1.7 lbs) |
| Compliance | CE / RoHS |
| ESD Safe/Non ESD Safe | ESD Safe, Non ESD Safe |
