• Precise Torque Control, Low Torque Reaction
• Quiet, Brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller req’d – sold separately)
• CE, RoHS Compliant

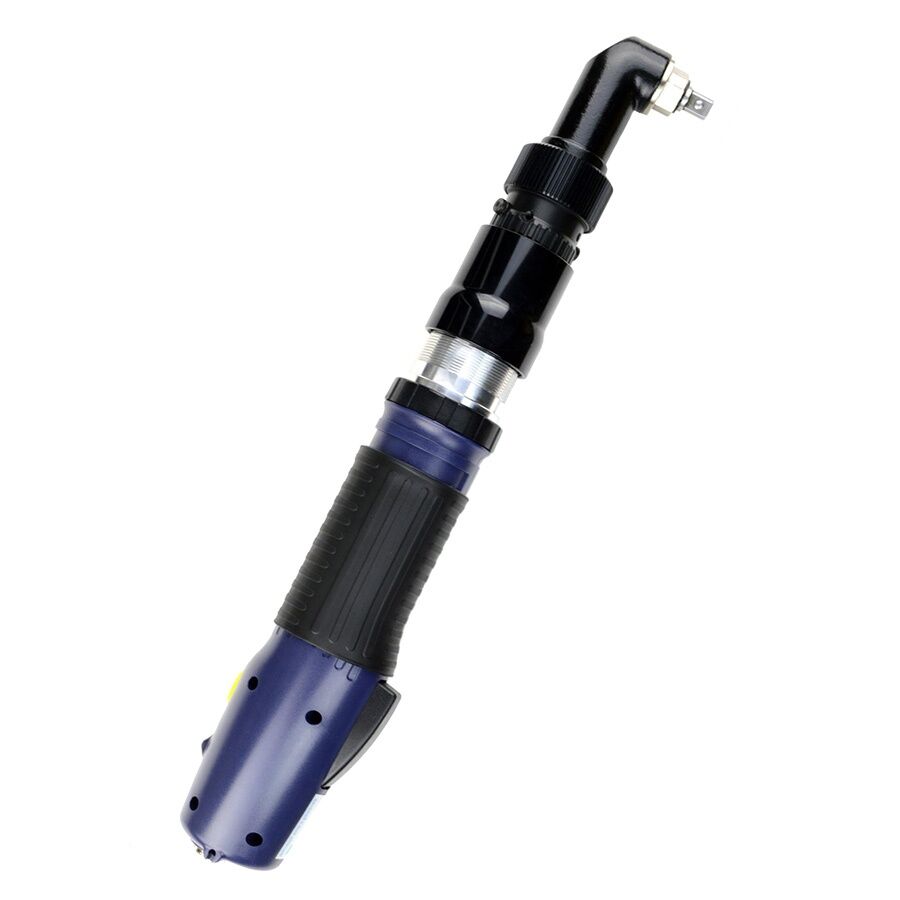

CESLT855M/RAS Series
(6-10 Nm)
(53-90 in-lbs)
Part# : CESLT855M/RAS
Categories: 4-11 Nm (35-97 in-lbs), Electric Torque Screwdrivers, Right Angle Electric Screwdrivers & Nutrunners
Class | 40V High Torque Shut-off |
---|---|
Start Type | Lever |
Torque Range | 53-90 in-lbs (6-10 Nm) |
Speed (RPM) | 600, 880 |
Drive Type | 3/8" Square Drive, 1/4" Hex Drive |
Length | 393 mm (15.5 in) |
Diameter | 46.2 mm (1.8 in) |
Weight | 1.8 kg (3.9 lbs) |
Compliance | CE / RoHS |
ESD Safe/Non ESD Safe | ESD Safe, Non ESD Safe |
