CESL810-ESD Series
Electric Torque Screwdriver
(0.02-0.35 Nm)
(0.2-3.1 in-lbs)
(0.2-3.1 in-lbs)
Complete your fastening system...
This item: CESL810-ESD Series
Electric Torque Screwdriver
(0.02-0.35 Nm)
Electric Torque Screwdriver
(0.02-0.35 Nm)
(0.2-3.1 in-lbs)
Standard power supply for 1000 RPM model (CESL810-ESD)
Standard power supply for 500 RPM model (CESL810S-ESD)
Upgraded Power Supply - Batch Count & I/O (All Models)
1 × Tool Balancer DR-TB1.5K (1.1-3.3 lbs) 44.00 USD

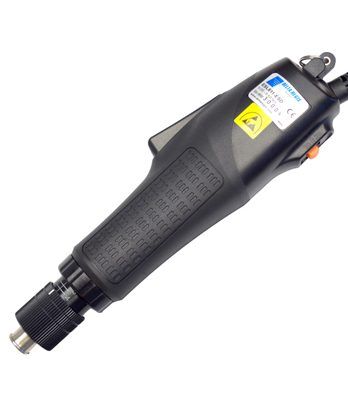

CESL810-ESD Series Electric Torque Screwdriver
ESD Safe housing comes standard
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Compact body design results in exceptional maneuverability and operator comfort
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
- Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
- CE, RoHS Compliant
- Power supply required – sold separately
Inline Electric Torque Screwdrivers provide excellent ergonomic benefits and increase efficiency to most assembly applications. Our inline electric torque controlled screwdrivers are offered in both AC direct plug-in a well as DC with external power supply and are offered in multiple torque ranges, start types & operating speeds. The Delta Regis CESL8 Series Premium Brushless Screwdrivers provide the ultimate combination of ergonomics, precision, performance and environmental cleanliness to the installation of fasteners.
| Class | 32V Compact Shut-off |
|---|---|
| Start Type | Lever |
| Torque Range | 0.2-3.1 in-lbs (0.02-0.35 Nm) |
| Speed (RPM) | 500/350, 1000/700 |
| Style | Inline |
| Input | 32-24VDC |
| Drive Size | 1/4" Hex |
| Length | 185 mm (7.3 in) |
| Diameter | 32 mm (1.3 in) |
| Weight | 385 g (0.8 lbs) |
| Compliance | CE / RoHS |
| ESD Safe/Non ESD Safe | ESD Safe |
