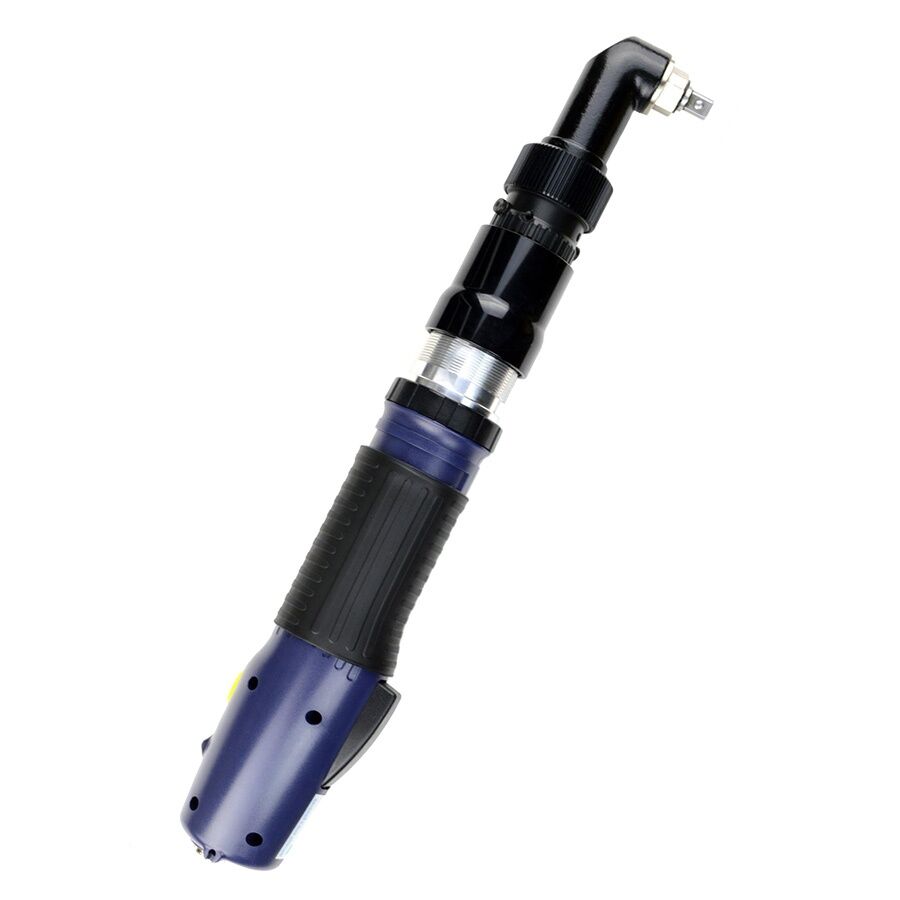

CESLT835M/RAS Series
(2-5 Nm)
(18 – 45 in-lbs)

Part# : CESLT835M/RAS Categories: 0.01-4.0 Nm (0.09-35 in-lbs), 4-11 Nm (35-97 in-lbs), Electric Torque Screwdrivers & Smart Tools, Right Angle Electric Screwdrivers & Nutrunners

• Precise Torque Control, Low Torque Reaction
• Quiet, Brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller req’d – sold separately)
• CE, RoHS Compliant

Class	40V High Torque Shut-off
Start Type	Lever
Torque Range	18-45 in-lbs (2-5 Nm)
Speed (RPM)	1200
Style	Inline
Drive Size	3/8" Square Drive, 1/4" Hex Drive
Length	393 mm (15.5 in)
Diameter	46.2 mm (1.8 in)
Weight	1.8 kg (3.9 lbs)
Compliance	CE / RoHS
ESD Safe/Non ESD Safe	ESD Safe, Non ESD Safe
