Inline Screwdrivers

Delta Regis screwdrivers are a staple in the assembly industry. Inline screwdrivers provide excellent ergonomic benefits and increase efficiency to most assembly applications. Our inline electric torque controlled screwdrivers are offered in both AC direct plug-in a well as DC with external power supply and are offered in multiple torque ranges, start types & operating speeds. All of our DC powered screwdrivers are available with an ESD safe housing for sensitive electronics applications.

Application Tip

When selecting a screwdriver, try to make sure that the specific torque required for the application falls somewhere near the middle of the tools torque range. For example, if you require a torque of 2.4 Nm (21 in-lbs) pick a tool that has a range of 1-4 Nm (8.8-35.4 in-lbs)

Product Name Torque Range Torque Filter Class Speed (RPM) Size Start Type ESD Safe Option?

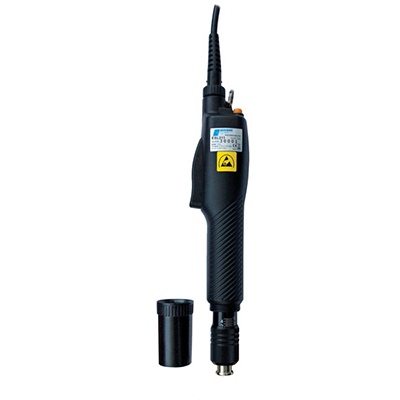

ESL210-ESD Series

ESL210-ESD Series


View Here
0.07-1.32 in-lbs
(0.01-0.15 Nm)
0-0.5 Nm 12V Micro Shut-off 1000/700, 280/200 Length: 165 mm (6.5 in)
Diameter: 23 mm (0.9 in)
Weight: 170 g (0.4 lb)
Lever Yes
CESL810-ESD Series

CESL810-ESD Series


View Here
0.2-3.1 in-lbs
(0.02-0.35 Nm)
0-0.5 Nm 32V Compact Shut-off 1000/700, 500/350 Length: 185 mm (7.3 in)
Diameter: 32 mm (1.3 in)
Weight: 385 g (0.8 lbs)
Lever Yes
ESL211-ESD Series

ESL211-ESD Series


View Here
0.44-3.08 in-lbs
(0.05-0.34 Nm)
0-0.5 Nm 12V Micro Shut-off 1000/700, 280/200 Length: 165 mm (6.5 in)
Diameter: 23 mm (0.9 in)
Weight: 170 g (0.4 lb)
Lever Yes
CESL811-ESD Series

CESL811-ESD Series


View Here
0.4-6.2 in-lbs
(0.05-0.69 Nm)
0-0.5 Nm , 0.5-1 Nm 32V Compact Shut-off 1000/700 Length: 185 mm (7.3 in)
Diameter: 32 mm (1.3 in)
Weight: 385 g (0.8 lbs)
Lever Yes
CESL812-ESD Series

CESL812-ESD Series


View Here
0.9-8.7 in-lbs
(0.10-0.98 Nm)
0-0.5 Nm , 0.5-1 Nm 32V Compact Shut-off 1000/700, 280 Length: 185 mm (7.3 in)
Diameter: 32 mm (1.3 in)
Weight: 385 g (0.8 lbs)
Lever Yes
CESL823 Series

CESL823 Series


View Here
1.3-10.5 in-lbs
(0.15-1.18 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 32V Standard Shut-off 1000/700, 2000 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 520 g (1.1 lbs)
Lever, Push Yes
ICESL623-ESD

ICESL623-ESD


View Here
1.7 - 10.5 in-lbs
(0.20 - 1.18 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 32V Standard Shut-off (Built-in Counter) 1000/700, 2000 Length: 270 mm (10.6 in)
Diameter: 37 mm (1.5 in)
Weight: 580 g (1.3 lbs)
Lever, Push Yes
CESL824(P)F Series

CESL824(P)F Series


View Here
2.6-14.7 in-lbs
(0.29-1.67 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 32V Standard Shut-off 2000 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 520 g (1.1 lbs)
Lever, Push Yes
CESL824 Series

CESL824 Series


View Here
2.6-16.5 in-lbs
(0.29-1.86 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm 32V Standard Shut-off 500, 1000/700, 2000 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 520 g (1.1 lbs)
Lever, Push Yes

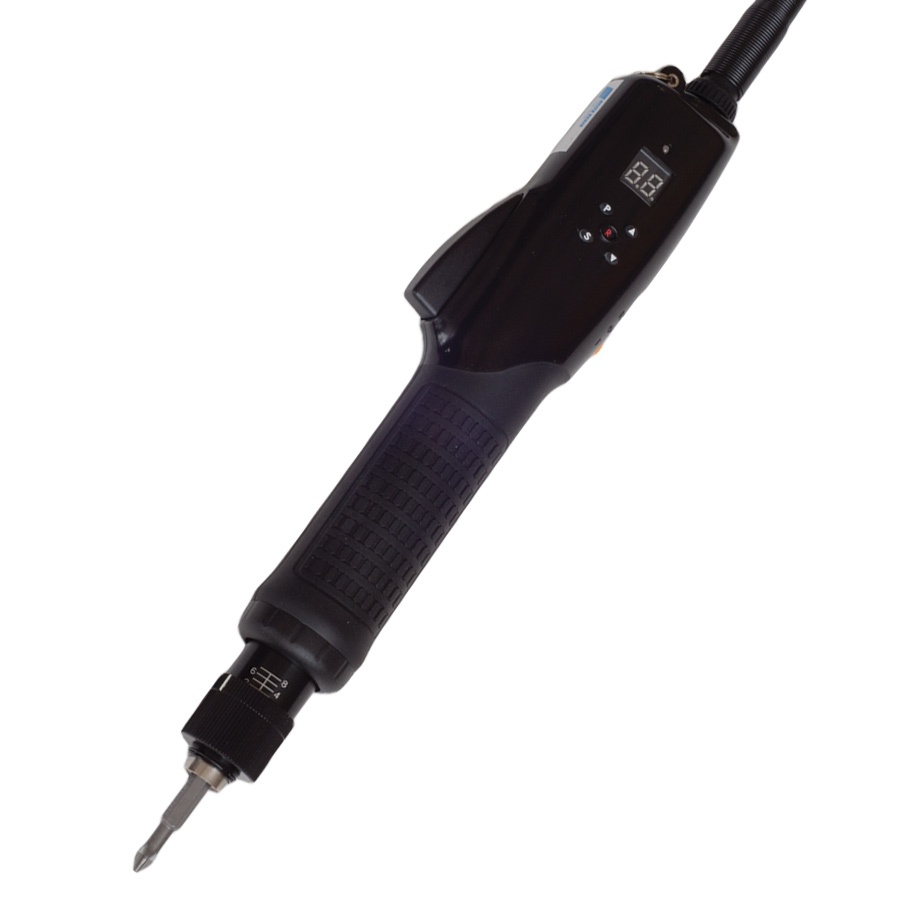

ICESL624-ESD

ICESL624-ESD


View Here
2.6-16.5 in-lbs
(0.29-1.86 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm 32V Standard Shut-off (Built-in Counter) 1000/700 Length: 270 mm (10.6 in)
Diameter: 37 mm (1.5 in)
Weight: 580 g (1.3 lbs)
Lever, Push Yes
CESL827B-ESD Series

CESL827B-ESD Series


View Here
8.7-26.0 in-lbs
(0.98-2.94 Nm)
0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm 32V Standard Shut-off 1200/900 Length: 278 mm (10.9 in)
Diameter: 39.5 mm (1.6 in)
Weight: 800 g (1.8 lbs)
Lever, Push No
CESL828 Series

CESL828 Series


View Here
8.9-26.0 in-lbs
(0.98-2.94 Nm)
0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm 40V Standard Shut-off 1000, 2000 Length: 278mm (11 in)
Diameter: 39.5 mm (1.6 in)
Weight: 0.8 kg (1.8 lbs)
Lever, Push Yes
ICESL628-ESD

ICESL628-ESD


View Here
8.7-26 in-lbs
(0.98-2.94 Nm)
0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm 40V Standard Shut-off (Built-in Counter) 1000/750, 2000 Length: 294 mm (11.6 in)
Diameter: 40 mm (1.6 in)
Weight: 820 g (1.8 lbs)
Lever, Push Yes
CESL829 Series

CESL829 Series


View Here
17.4-43.4 in-lbs
(1.96-4.90 Nm)
1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V Standard Shut-off 1000 Length: 278mm (11 in)
Diameter: 39.5 mm (1.6 in)
Weight: 0.8 kg (1.8 lbs)
Lever, Push Yes
ICESL629-ESD

ICESL629-ESD


View Here
17.4-43.4 in-lbs
(1.96-4.90 Nm)
1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V Standard Shut-off (Built-in Counter) 1000/750 Length: 294 mm (11.6 in)
Diameter: 40 mm (1.6 in)
Weight: 820 g (1.8 lbs)
Lever, Push Yes
CESLT835M Series

CESLT835M Series


View Here
18-53 in-lbs
(2-6 Nm)
2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V High Torque Shut-off 1200 Length: 297 mm (11.7 in)
Diameter: 46.2 mm (1.8 in)
Weight: 1.3 kg (2.6 lbs)
Lever, Push Yes
CESLT935 Series

CESLT935 Series


View Here
18-53 in-lbs
(2-6 Nm)
2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V High Torque Shut-off (Slim) 1000/750, 2200/1650 Length: 306 mm (12 in)
Diameter: 41.4 mm (1.6 in)
Weight: 1.0 kg (2.3 lbs)
Lever, Push Yes
CESLT845M Series

CESLT845M Series


View Here
27-79 in-lbs
(3-9 Nm)
3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V High Torque Shut-off 900 Length: 297 mm (11.7 in)
Diameter: 46.2 mm (1.8 in)
Weight: 1.3 kg (2.6 lbs)
Lever, Push Yes
CESLT945 Series

CESLT945 Series


View Here
27-79 in-lbs
(3-9 Nm)
3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 40V High Torque Shut-off (Slim) 1000/750 Length: 306 mm (12 in)
Diameter: 41.4 mm (1.6 in)
Weight: 1.0 kg (2.3 lbs)
Lever, Push Yes
CESLT855M Series

CESLT855M Series


View Here
36-106 in-lbs
(4-12 Nm)
4-11 Nm , 11-51 Nm 40V High Torque Shut-off 600, 880/660 Length: 297 mm (11.7 in)
Diameter: 46.2 mm (1.8 in)
Weight: 1.3 kg (2.6 lbs)
Lever, Push Yes
CESLT955 Series

CESLT955 Series


View Here
53-106 in-lbs
(6-12 Nm)
4-11 Nm , 11-51 Nm 40V High Torque Shut-off (Slim) 880/660 Length: 306 mm (12 in)
Diameter: 41.4 mm (1.6 in)
Weight: 1.0 kg (2.3 lbs)
Lever, Push Yes
CESLT865M Series

CESLT865M Series


View Here
53-159 in-lbs
(6-18 Nm)
4-11 Nm , 11-51 Nm 40V High Torque Shut-off 370, 600/450 Length: 297 mm (11.7 in)
Diameter: 46.2 mm (1.8 in)
Weight: 1.5 kg (3.2lbs)
Lever, Push Yes
CESLT875M Series

CESLT875M Series


View Here
71-221 in-lbs
(8-25 Nm)
4-11 Nm , 11-51 Nm 40V High Torque Shut-off 370 Length: 297 mm (11.7 in)
Diameter: 46.2 mm (1.8 in)
Weight: 1.3 kg (2.6 lbs)
Lever, Push Yes
CESLT885M-SQ Series

CESLT885M-SQ Series


View Here
106-310 in-lbs
(12-35 Nm)
11-51 Nm 40V High Torque Shut-off 350 Length: 393 mm (15.5 in)
Diameter: 52.7 mm (2.07 in)
Weight: 2.2 kg (4.8 lbs)
Lever, Push No
CESLT895M-SQ Series

CESLT895M-SQ Series


View Here
177-443 in.lbs
(20-50 Nm)
11-51 Nm 40V High Torque Shut-off 200 Length: 393 mm (15.5 in)
Diameter: 52.7 mm (2.07 in)
Weight: 2.2 kg (4.8 lbs)
Lever, Push No

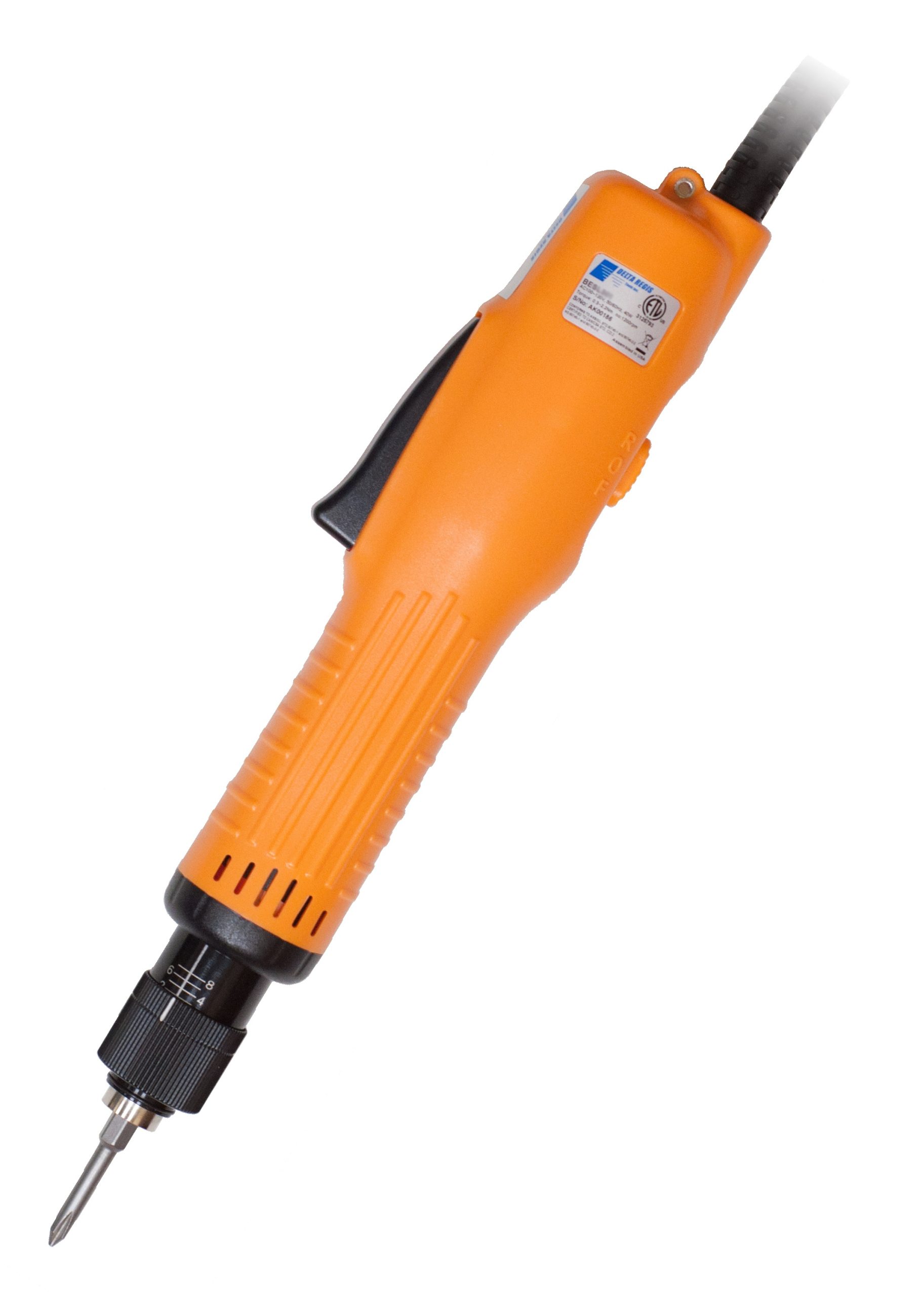

BESL300 Series

BESL300 Series


View Here
1.8-10.4 in-lbs
(0.2-1.2 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 120V Shut-off 1200, 2000 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 470 g (1.1 lbs)
Lever, Push No

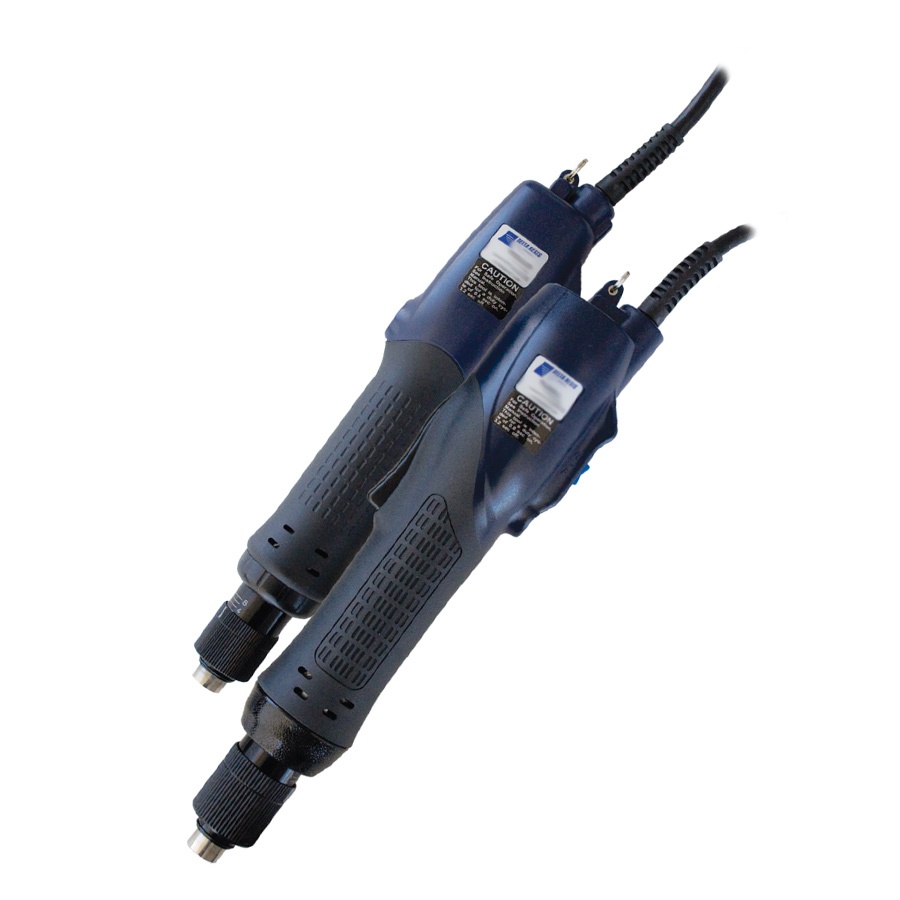

ESL300 Series

ESL300 Series


View Here
1.8-10.4 in-lbs
(0.2-1.2 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 120V Shut-off (Carbon Brush Motor) 1000 Length: 241 mm (9.5 in)
Diameter: 38 mm (1.5 in)
Weight: 544 g (1.2 lbs)
Lever, Push No
BESL301(P)F Series

BESL301(P)F Series


View Here
2.6-14.8 in-lbs
(0.3-1.7 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm 120V Shut-off 2000 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 470 g (1.1 lbs)
Lever, Push No
ESL301 Series

ESL301 Series


View Here
2.5-16.5 in-lbs
(0.3-1.9 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm 120V Shut-off (Carbon Brush Motor) 1000 Length: 241 mm (9.5 in)
Diameter: 38 mm (1.5 in)
Weight: 544 g (1.2 lbs)
Lever, Push No
BESL301 Series

BESL301 Series


View Here
3.5-19.1 in-lbs
(0.4-2.2 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm 120V Shut-off 1200 Length: 245 mm (9.6 in)
Diameter: 36 mm (1.4 in)
Weight: 470 g (1.1 lbs)
Lever, Push No
ESL383E Series

ESL383E Series


View Here
3.5-19 in-lbs
(0.4-2.2 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm 220V Shut-off (Carbon Brush Motor) 1000 - 0.5-2.2 Nm (4.4-19 in-lbs), 1900 - 0.4-1.7 Nm (3.5-15 in-lbs) Length: 286 mm (11.3 in)
Diameter: 41.2 mm (1.6 in)
Weight: 700 g (1.6 lb)
Lever, Push No
BESL302LT Series

BESL302LT Series


View Here
4.3-21.7 in-lbs
(0.5-2.5 Nm)
0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm 120V Shut-off 1000, 2000 Length: 290 mm (11 in )
Diameter: 38 mm (1.5 in)
Weight: 740g (1.6 lbs)
Lever, Push No
ESL302 Series

ESL302 Series


View Here
13-39 in-lbs
(1.5-4.4 Nm)
1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 120V Shut-off (Carbon Brush Motor) 500 Length: 269 mm (10.6 in)
Diameter: 41 mm (1.6 in)
Weight: 700 g (1.6 lbs)
Lever, Push No
BESL302 Series

BESL302 Series


View Here
17.4-43.4 in-lbs
(2.0-4.9 Nm)
2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 120V Shut-off 1000 Length: 290 mm (11 in )
Diameter: 38 mm (1.5 in)
Weight: 740g (1.6 lbs)
Lever, Push No
ESL500LT

ESL500LT


View Here
0.44-6.1 in-lbs
(0.05-0.69 Nm)
0-0.5 Nm , 0.5-1 Nm 120V Economy Slip Clutch (Carbon Brush Motor) 1200 Length: 230 mm (9.1 in)
Diameter: 36 mm (1.4 in)
Weight: 480 g (1.1 lbs)
Lever No
ESL500

ESL500


View Here
1.8-13 in-lbs
(0.2-1.47 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm 120V Economy Slip Clutch (Carbon Brush Motor) 1200 Length: 230 mm (9.1 in)
Diameter: 36 mm (1.4 in)
Weight: 480 g (1.1 lbs)
Lever No
ESL501

ESL501


View Here
4.4-21.6 in-lbs
(0.49-2.45 Nm)
0-0.5 Nm , 0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm 120V Economy Slip Clutch (Carbon Brush Motor) 1000 Length: 230 mm (9.1 in)
Diameter: 36 mm (1.4 in)
Weight: 480 g (1.1 lbs)
Lever No
ESL502

ESL502


View Here
8.8-30 in-lbs
(0.98-3.40 Nm)
0.5-1 Nm , 1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm 120V Economy Slip Clutch (Carbon Brush Motor) 700 Length: 230 mm (9.1 in)
Diameter: 36 mm (1.4 in)
Weight: 480 g (1.1 lbs)
Lever No
ESL503

ESL503


View Here
13.2-39 in-lbs
(1.47-4.41 Nm)
1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 120V Economy Slip Clutch (Carbon Brush Motor) 500 Length: 230 mm (9.1 in)
Diameter: 36 mm (1.4 in)
Weight: 480 g (1.1 lbs)
Lever No
ESL384E Series

ESL384E Series


View Here
8.8-26 in-lbs
(1.0-2.9 Nm)
1-1.5 Nm , 1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm 220V Shut-off (Carbon Brush Motor) 700, 1000 Length: 286 mm (11.3 in)
Diameter: 41.2 mm (1.6 in)
Weight: 700 g (1.6 lbs)
Lever, Push No
ESL385E Series

ESL385E Series


View Here
13-39 in-lbs
(1.5-4.4 Nm)
1.5-2 Nm , 2-2.5 Nm , 2.5-3 Nm , 3-3.5 Nm , 3.5-4 Nm , 4-11 Nm 220V Shut-off (Carbon Brush Motor) 500 Length: 286 mm (11.3 in)
Diameter: 41.2 mm (1.6 in)
Weight: 700 g (1.6 lbs)
Lever, Push No
