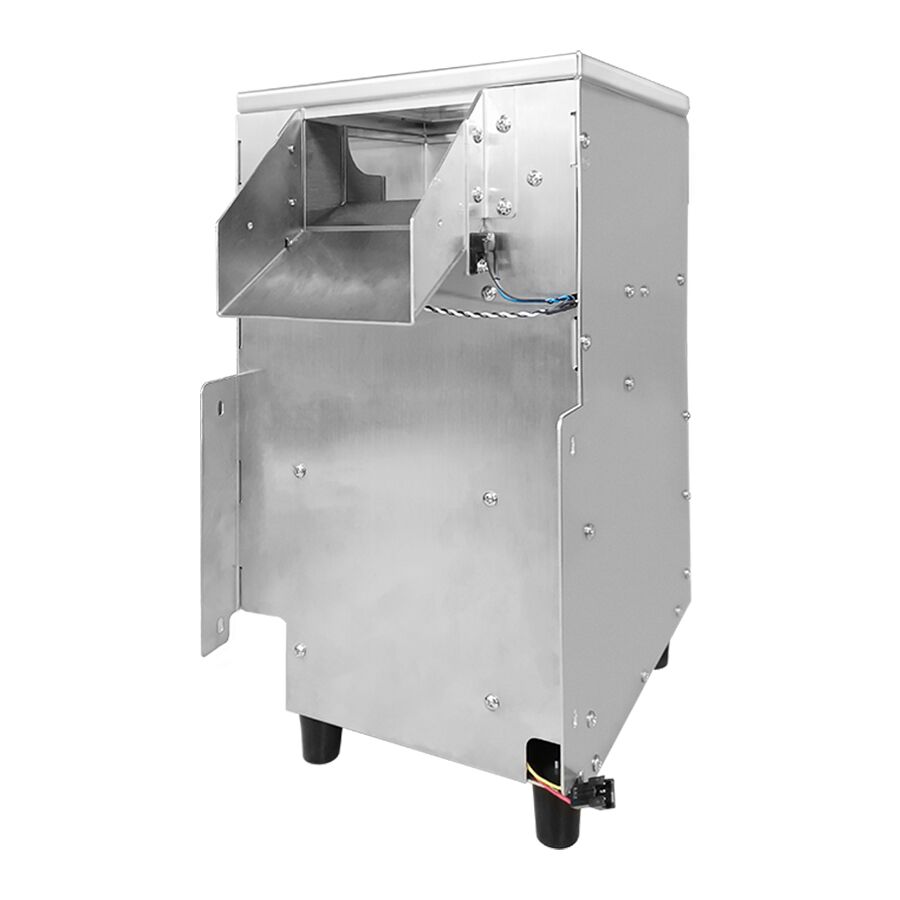

DRFF-1500HP External Screw Presenter Bulk Hopper

Name: DRFF-1500HP External Screw Presenter Bulk Hopper<br><H5>Compatible with DRFF-535(R) <br>Series Screw Presenters</H5>
SKU: DRFF-1500HP
Price: 2350.0000 USD
Availability: InStock

Compatible with DRFF-535(R)
Series Screw Presenters

2,350.00 USD

Part# : DRFF-1500HP Categories: Manual Pickup, Robotic Pickup, Screw Feeder, Screw Presenters

Description
Specifications

Provides an additional 1500cc of storage capacity and will automatically replenish fasteners in the primary screw presenter hopper based on fastener levels.
Remote outputs for external control
High quality brushless motors
Multiple programming options to provide optimal feeding for different fastener types
Includes: AC adapter, primary hopper sensor

Dimensions	202 x 190 x 320 mm (7.9 x 7.5, x 12.6 in)
Weight	5 Kg / 11 lbs
Power Source	100-240VAC (50/60Hz)
AC Adapter	12VDC (2.0A)
Bulk Hopper Capacity	1500CC
Compatible Screw Presenters	DRFF-535(R) Series
