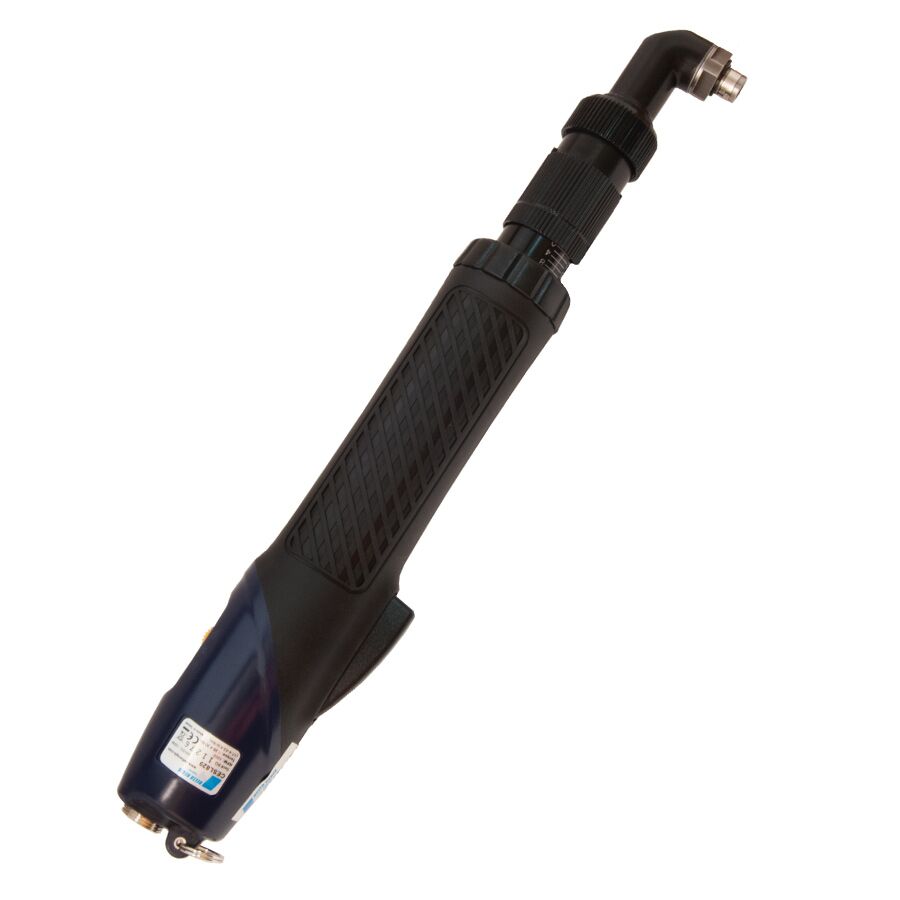

CESL824/RA Series
Electric Torque Screwdriver
(0.20-1.30 Nm)
(1.8-11.6 in-lbs)
(1.8-11.6 in-lbs)
Complete your fastening system...
This item: CESL824/RA Series
Electric Torque Screwdriver
(0.20-1.30 Nm)
Electric Torque Screwdriver
(0.20-1.30 Nm)
(1.8-11.6 in-lbs)
Standard power supply for 1000 RPM model (CESL824/RA Series)
Standard power supply for 2000 RPM model (CESL824F/RA Series)
Upgraded Power Supply - Batch Count & I/O (All Models)
1 × Tool Balancer DR-TB1.5K (1.1-3.3 lbs) 44.00 USD
- Precise torque control, low torque reaction
- Quiet brushless DC motor means no carbon dust
- Compact body design results in exceptional maneuverability and operator comfort
- ESD safe housing
- Less heat build-up and higher duty cycle capabilities than conventional brush motors
- 3 year motor warranty
- Screwdriver includes: torque lock sleeve, 6-pin, 2m long cable and Philips bits
- CE, RoHS Compliant
- Power supply required – sold separately
| Class | 32V Standard Shut-off |
|---|---|
| Start Type | Lever |
| Speed(RPM)/Torque Range | 1000/700 – 1.8-11.6 in-lbs (0.20-1.30 Nm), 2000 – 1.8-10.4 in-lbs (0.20-1.17 Nm) |
| Input | 32-24VDC |
| Drive Size | 1/4" Hex |
| Length | 305 mm (12 in) |
| Diameter | 30 mm (1.2 in) |
| Weight | 770 g (1.7 lbs) |
| Compliance | CE / RoHS |
| ESD Safe/Non ESD Safe | ESD Safe, Non ESD Safe |
| Torque Range | 1.8-11.6 in-lbs (0.20-1.30 Nm) |
