Top 5 Best Screw Presenters by Delta Regis
Jun
Even the smallest improvements in workflows can lead to massive gains in productivity. Here’s where the screw presenters shine their brightest. These machines simplify the process of presenting screws to the operator or robotic arm, allowing the operator to avoid spending time fumbling through bins and improving repeatability on the line.
But not all screw presenters are built the same. The most important factors affecting which model you should select for your production line are screw size, thread length, application volume, and whether you’re working with manual tools or automated robotic systems. No matter what the application, the ideal screw presenter will reduce downtime, streamline screw feeding, and support your fastening goals.
In today’s guide, we’ll highlight the best from Delta Regis’ line up of screw presenters. Each machine is designed to suit specific manufacturing needs. And whether it is micro screws or handling high-volume robotic application this list will help you figure out what the best solution is for you.
What to look for in a screw presenter
To choose the right screw presenter you’ll need to understand your production needs. Screw size compatibility is one of the first things to consider – not all models can handle the same thread lengths or diameters. It is important that you choose a unit that is built to present the types of fasteners you use most often.
Next, it’s important that you evaluate the hopper capacity. The larger the hopper, the less refills you’ll need, especially in a high production environment. You’ll also need to consider whether your application requires manual pick-up or robotic feed—Delta Regis has models optimized for both use cases.
Volume matters as well. As your production line continuously runs or handles a variety of parts, your chosen screw presenter needs to handle these situations gracefully without jamming or slowing down. To provide flexibility, some models offer adjustable track or interchangeable parts so that you can switch to different screw types frequently.
By selecting a presenter that matches your screw specs and workflow, you can improve efficiency, reduce errors, and extend the life of your fastening tools.
- DRFF-208 / DRFF-208R — Precision for Small-Scale Assembly
- DRFF-630C — High-Precision Screw Dispenser with Programmable Counting
- DRFF-519E / DRFF-519RE — Ideal for Medium Screws & High-Efficiency Lines
- DRFF-530 / DRFF-530R — Built for Larger Screws & High-Volume Assembly
- DRFF-800HP / DRFF-1500HP — Bulk Hoppers for Uninterrupted Production
How to Choose the Right Model for Your Line
Ready to Boost Your Fastening Efficiency?

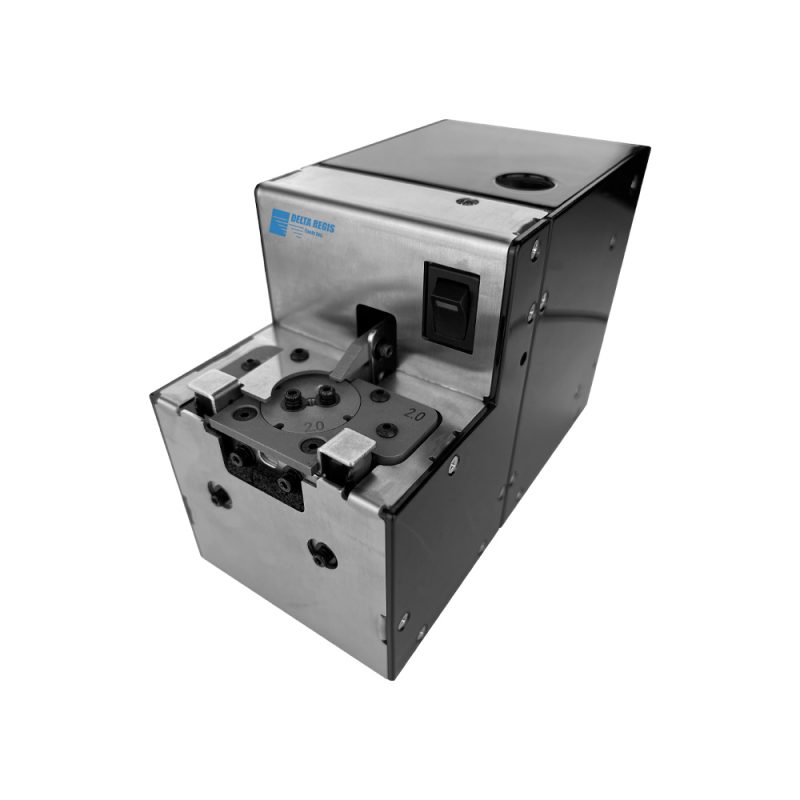

1. DRFF-208 / DRFF-208R — Precision for Small-Scale Assembly
The first product on the list is the DRFF-208 series. It is a compact and reliable screw presenter capable of dispensing small fasteners and working in tight workspaces. Supporting screw sizes from #000 to #2 (M0.8-M2.0), also features a 0.31in (8mm) max thread length and a hopper capacity of about 110 cc, making it the ideal presenter for electronics, watch repair, micro-assembly tasks.
Delta Regis offers the DRFF-208 in both manual and robotic (DRFF-208R), providing flexibility for a range of operator and automation setups. If tiny screws are an everyday part of your assembly and you require a feed system in low-medium production, this screw presenter is the perfect match for you.

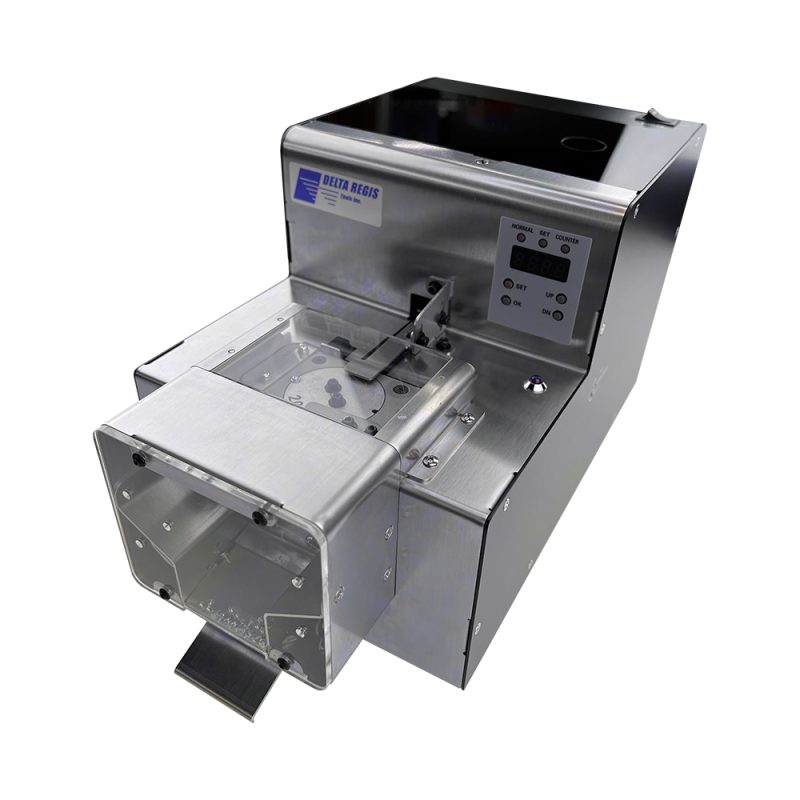

2. DRFF-630C — High-Precision Screw Dispenser with Programmable Counting
The DRFF-630C Series offers a flexible and highly accurate screw dispensing solution with built-in counting functionality—perfect for applications that require batch counting, binning, or kitting. Whether you’re preparing screws for sub-assemblies or packaging, this model brings precision and simplicity to the process.
Designed for manual pickup, the DRFF-630C allows users to program the exact number of screws to be dispensed. Operators can visually monitor the feed process through clear plexiglass windows, and adjust performance using intuitive controls that fine-tune drum rotation, vibration timing, and vibration intensity.
Its multiple motor system handles vibration, feeding, and turntable operation separately for more consistent performance. With quiet operation, auto shut-off, and simple setup, this unit is a cost-effective and efficient choice for improving throughput in low to mid-volume production lines.
Whether you’re feeding screws for assembly or creating screw kits for downstream use, the DRFF-630C gives you the control and repeatability needed for streamlined operations.

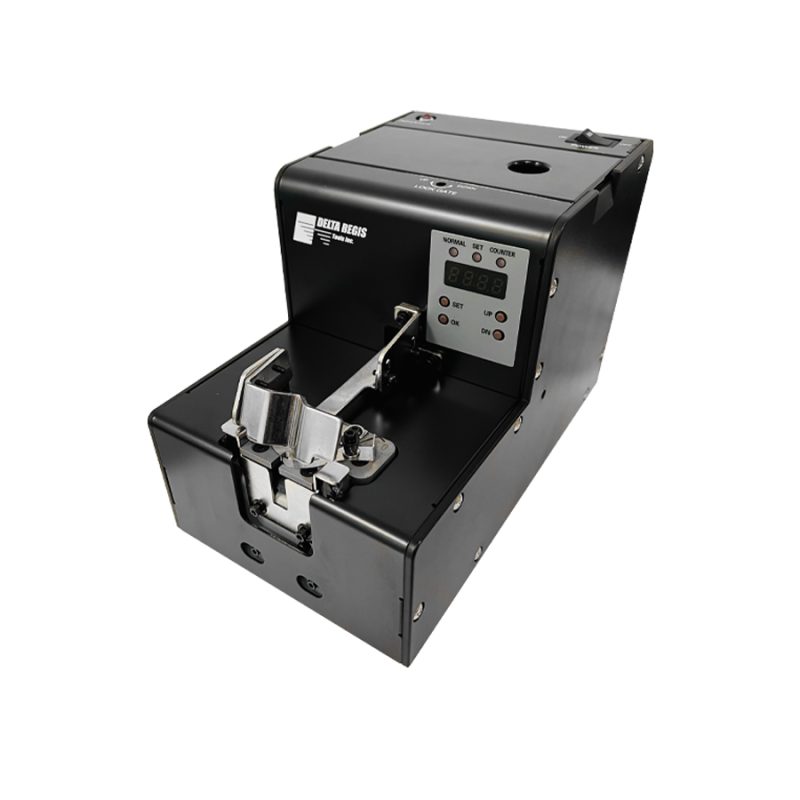

3. DRFF-519E / DRFF-519RE — Ideal for Medium Screws & High-Efficiency Lines
Now for production environments dealing with medium-sized screws and an improved cycle time, the DRFF-519E offer great reliability. With support for screw sizes #00 to #10 (M1.2–M5.0) and a maximum thread length of 0.75 in (19 mm), this model balances capacity with speed for reliable delivery.
With a hopper of ~220CC to keep screws readily available and a compact form factor, it makes the DRFF-519E easy to integrate in tight workstations or other robotic setup. It is yet another presenter that comes in both manual and robotic formats, well-suited for medium to high volume manufacturing applications that require both speed and accuracy.

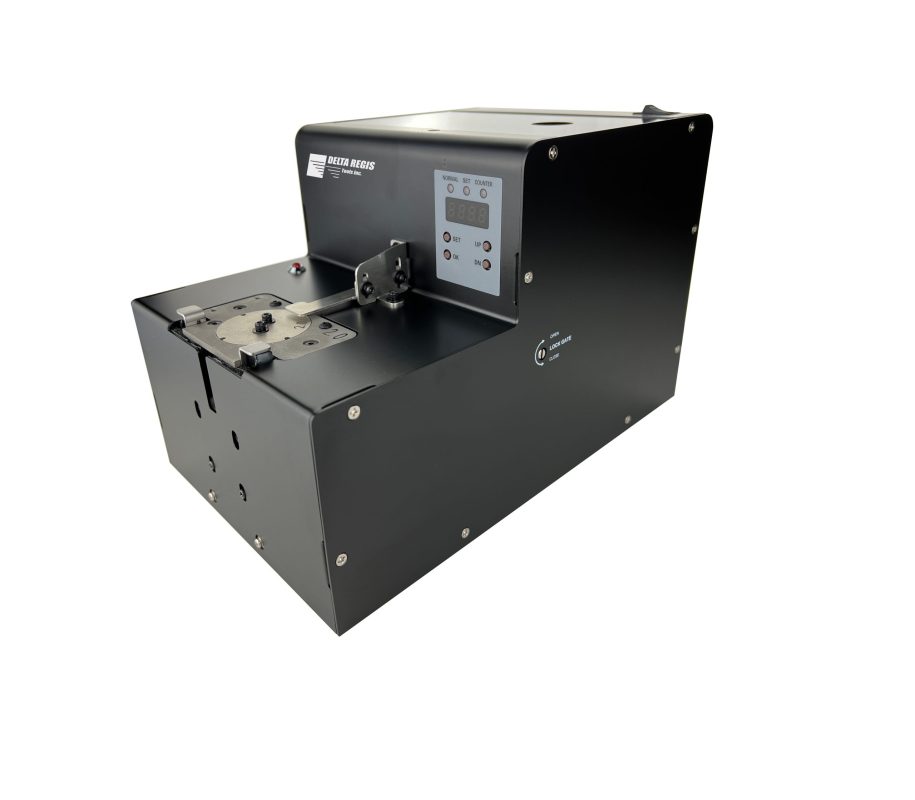

4. DRFF-530 / DRFF-530R — Built for Larger Screws & High-Volume Assembly
For higher volume assemblies with larger screws, the DRFF-530 Series delivers. Built for handling #2 to #12 screws (M2.0-M6.0) with thread lengths up to 1.18 in (30mm), this model is perfect for heavier-duty applications.
The larger 600 cc hopper significantly reduces for constant reloading, making it a great fit for manual (530) and robotic(530R) operations in high-throughput environments. The screw presenter ensures consistent delivery and uptime whether or not you are working on equipment requiring durable fasteners.

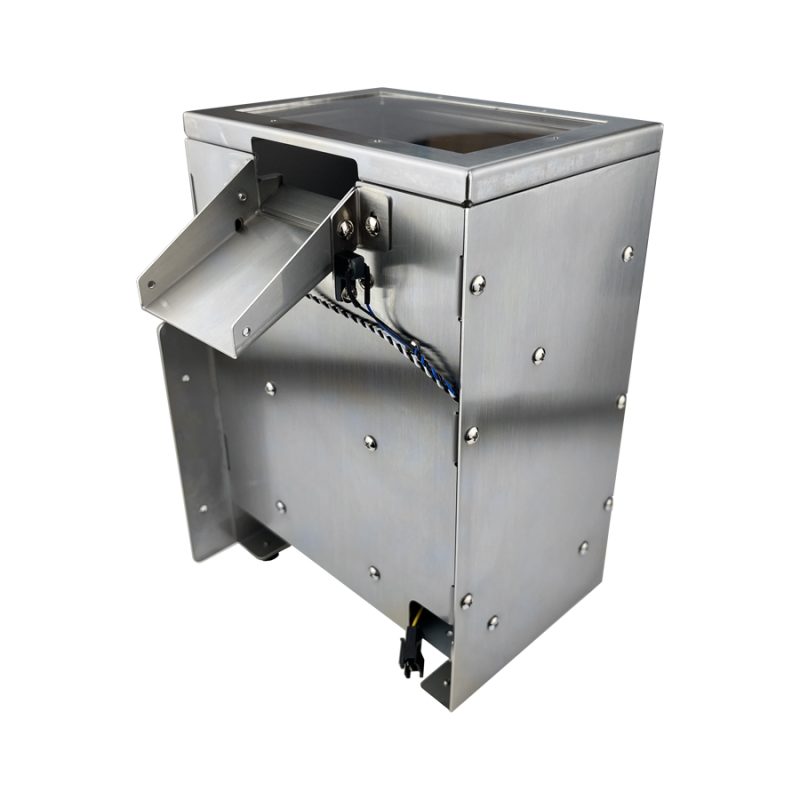

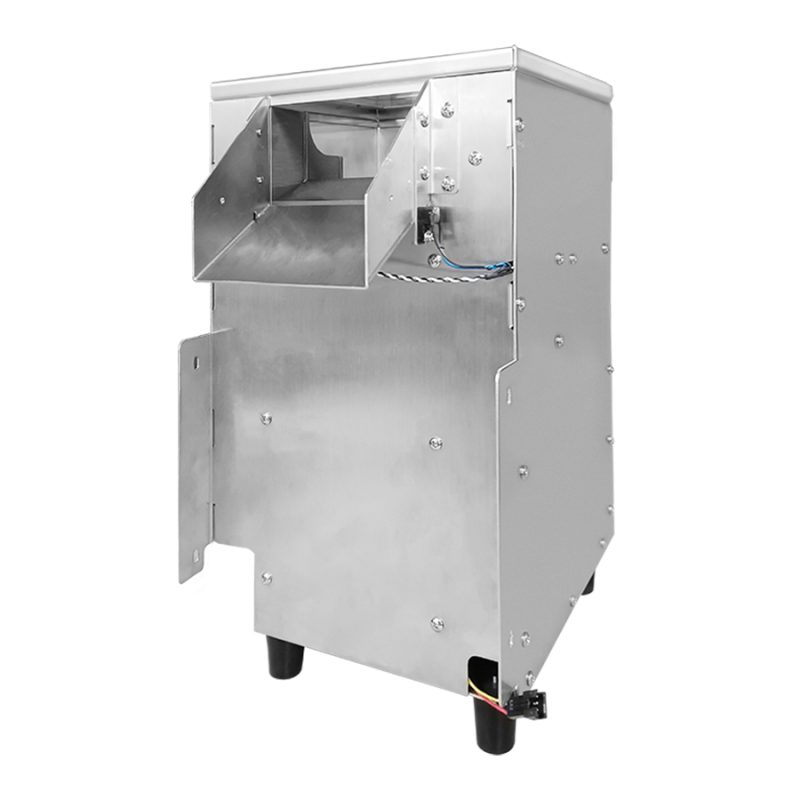

5. DRFF-800HP / DRFF-1500HP — Bulk Hoppers for Uninterrupted Production
If your priority is to minimize your downtime, external bulk hoppers like the DRFF-800HP and DRFF-1500HP provide a smart solution. This bulk hopper is designed to pair with compatible models like the DRFF-530(R), DRFF-535(R), and DRFF-630C, these are high-capacity feeders that keep your screw dispensers loaded and ready for extended production.
These large hopper volumes of 800cc or 1500cc are ideal for high-volume manufacturing where frequent refills slow down production. With either manual or robotic pick-up models, these external hoppers streamline your fastening and support long uninterrupted runs.
Comparison Table
Screw Feeders for Manual Pickup
| Model | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) | Max Screw Thread Length |
|---|---|---|---|---|---|---|

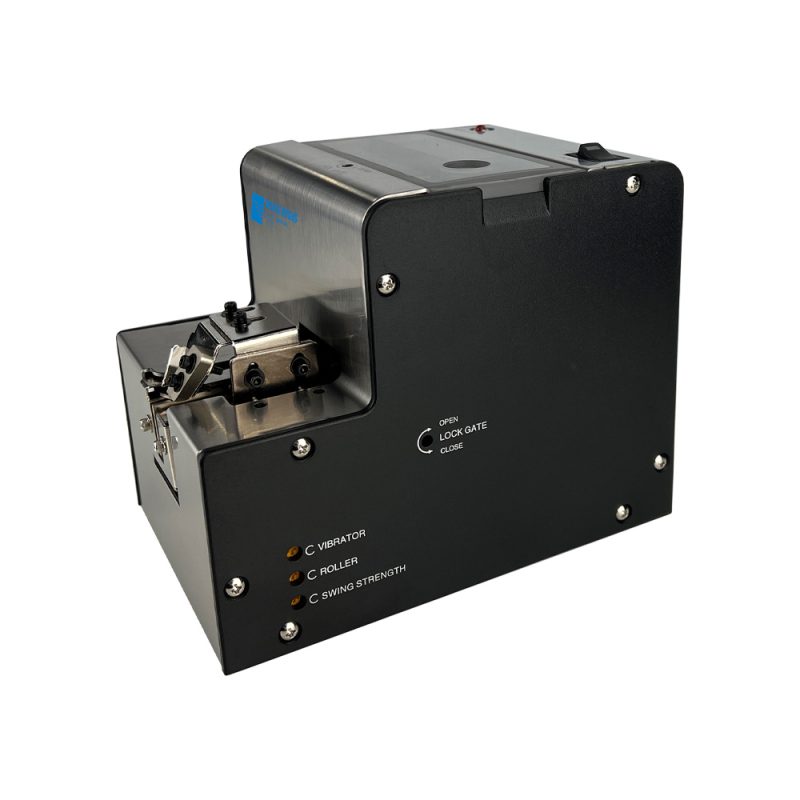

| DRFF-520SS | 182 x 126 x 147 mm | 2.49kg / 5.5lbs | 100–240VAC | 15VDC | M1.0–M5.0 (Adjustable) | 20 mm |
| DRFF-208 | 160 x 82 x 112 mm | 1.53kg / 3.3lbs | 100–240VAC | 12VDC | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 | 8 mm |
| DRFF-508 | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 8 mm | ||
| DRFF-519E (Extended Rail) | 216 x 126 x 150 mm | 3.1kg / 6.8lbs | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 | 19 mm | ||
| DRFF-530 (600cc Hopper) | 249.5 x 162.5 x 175 mm | 5 kg / 11.0 lbs | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm | ||
| DRFF-535 | 292.5 x 190 x 210 mm | 7 kg / 15.4 lbs | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 / M8.0 / M9.0 | 35 mm |
Screw Feeders for Vacuum Pickup & Automation
| Model | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) | Max Screw Thread Length |
|---|---|---|---|---|---|---|
| DRFF-208R | 160 x 82 x 112 mm | 1.46kg / 3.2lbs | 100–240VAC | 12VDC | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 | 8 mm |
| DRFF-508R | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.0 / M3.5 / M4.0 / M5.0 | 8 mm | ||
| DRFF-519R | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 | 19 mm | ||
| DRFF-519RE (Extended Rail) | 216 x 126 x 150 mm | 3.1kg / 6.8lbs | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 | 19 mm | ||
| DRFF-530R (600cc Hopper) | 249.5 x 162.5 x 175 mm | 5 kg / 11.0 lbs | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm | ||
| DRFF-535R | 292.5 x 190 x 210 mm | 7 kg / 15.4 lbs | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 / M8.0 / M9.0 | 35 mm |
Screw Counters
| Model | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) | Max Screw Thread Length |
|---|---|---|---|---|---|---|
| DRFF-630C | 308 x 162.5 x 202 mm | 5 kg / 11 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm |
| DRFF-835C | 345 x 190 x 234 mm | 7 kg / 15.5 lbs | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 / M8.0 / M9.0 | 35 mm |
Bulk Hoppers
| Model | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Bulk Hopper Capacity | Compatible DRFF Series Screw Presenter |
|---|---|---|---|---|---|---|
| DRFF-800HP | 175 x 163 x 232 mm | 3.0 kg / 6.6 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | 800CC | DRFF-530(R), DRFF-630C |
| DRFF-1500HP | 202 x 190 x 320 mm | 5.0 kg / 11.02 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | 1500CC | DRFF-535 |
How to Choose the Right Model for Your Line
Choosing the ideal screw presenter starts with knowing your fasteners. To get the best out of your screw presenter you need to ensure that the type of screw size and thread lengths you’re using are compatible with your screw presenter track and hopper design. This will prevent jams from happening as well as ensure smooth delivery.
You’ll also need to evaluate your production volume and required cycle time. Higher output production lines will benefit greatly from having larger capacity units or even bulk hoppers that will keep your workflow moving without interruptions. The smaller hoppers will work for low- to mid-volume production lines.
The next thing you’ll want to consider is the correct pick-up method. Manual models work best for operators with handheld tools, while robotic models work very well with automated systems or integration into multi-axis arms.
The final thing to consider is if you’re looking to extend your uptime, you’ll need to confirm that the presenter supports external hopper attachments for additional feed capacity. This one upgrade can significantly reduce interruptions in your assembly process.
Ready to Boost Your Fastening Efficiency?
Explore our full lineup of Delta Regis Screw Presenters designed for both manual and robotic applications. Not sure which model fits your needs? Reach out to our team or fill out a Product Application Form—we’ll guide you to the right solution.
